WAGNER TUNING Comp. Intercooler Kit for Honda Civic FK7
Price:
Regular price
950,00 €
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
SKU: 200001114.PIPE
information
information on product safety
Competition Intercooler Kit for Honda Civic FK7 1.5VTec Turbo
Advantages of the Wagner Tuning intercooler:
- improved cooling performance
- 18% larger inflow area
- 65% more charge air volume
- Weight 7.5kg
- efficient air flow
- Plug & Play
Honda Civic FK7 1.5VTec Turbo 132KW/182PS (2017+)
The Competition high-performance intercooler has the following core dimensions (715mm x 162mm x 122mm / stepped = 12,700cm³), offering a 42% larger inlet area and 144% more charge air volume compared to the original intercooler. The Competition high-performance core is a high-quality tube fin core with internal turbulators. Despite its size, the total weight of the intercooler is only 7.5kg. The intercooler end boxes are made of cast aluminum and were optimized using CFD flow analysis. The intercooler kit was developed specifically for the larger tuning stages and is therefore optionally available with Ø60mm piping. The result is excellent cooling properties with minimal backpressure. In addition, all our intercoolers feature an anti-corrosion coating with thermal conductivity. This guarantees long-lasting and optimal cooling with a significant increase in performance. Completely ready-to-install kit, simply replace the stock intercooler – plug and play. Tested and pressure-stable up to 6 bar. All our products are subject to continuous quality control. Suitable for racing.
Dimensions of the original intercooler:
710mm x 114mm x 64mm
V=5.2 liters
A=809 cm²
Dimensions of Wagner Tuning intercooler:
715mm x 162mm x 122mm
V=12.7 liters
A=1154 cm²

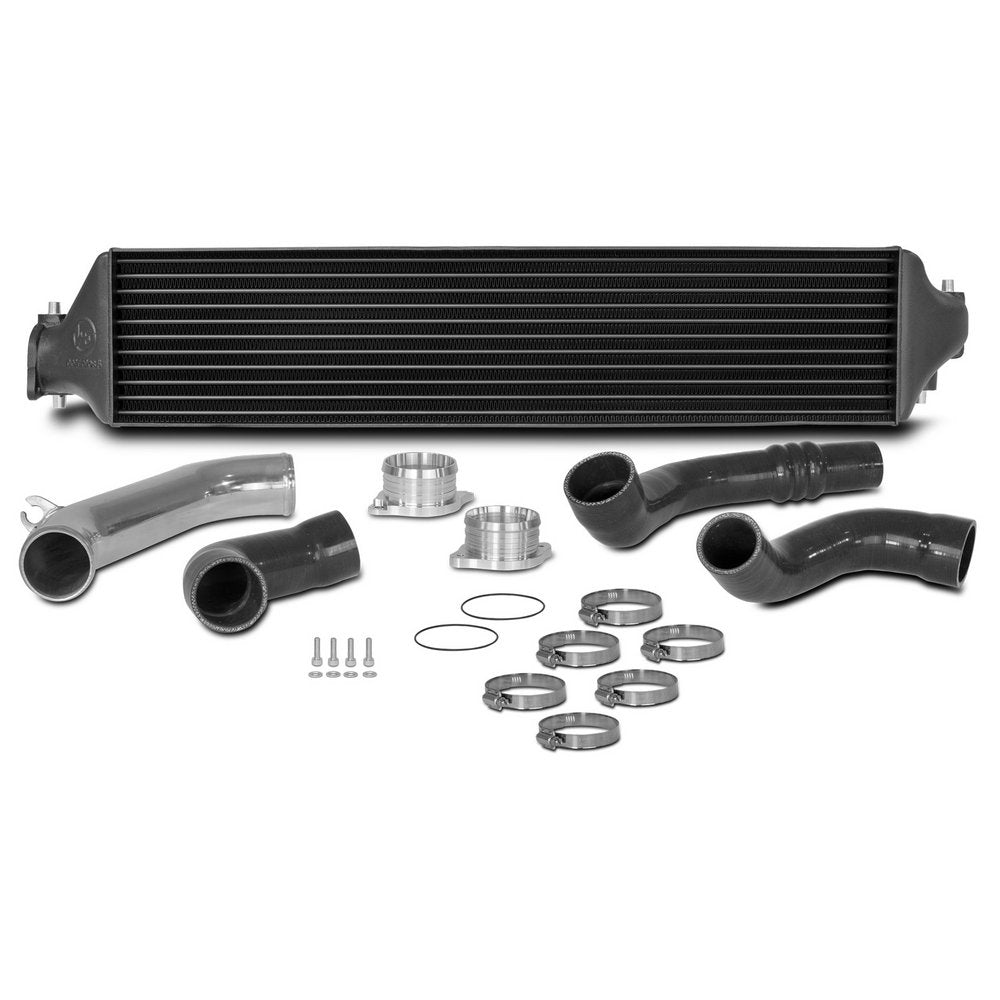

Scope of delivery:
1 intercooler (black coated)
2 adapter plates for OEM connection
2 sealing rings
1 assembly instructions
Not permitted in the area of the STVO.
