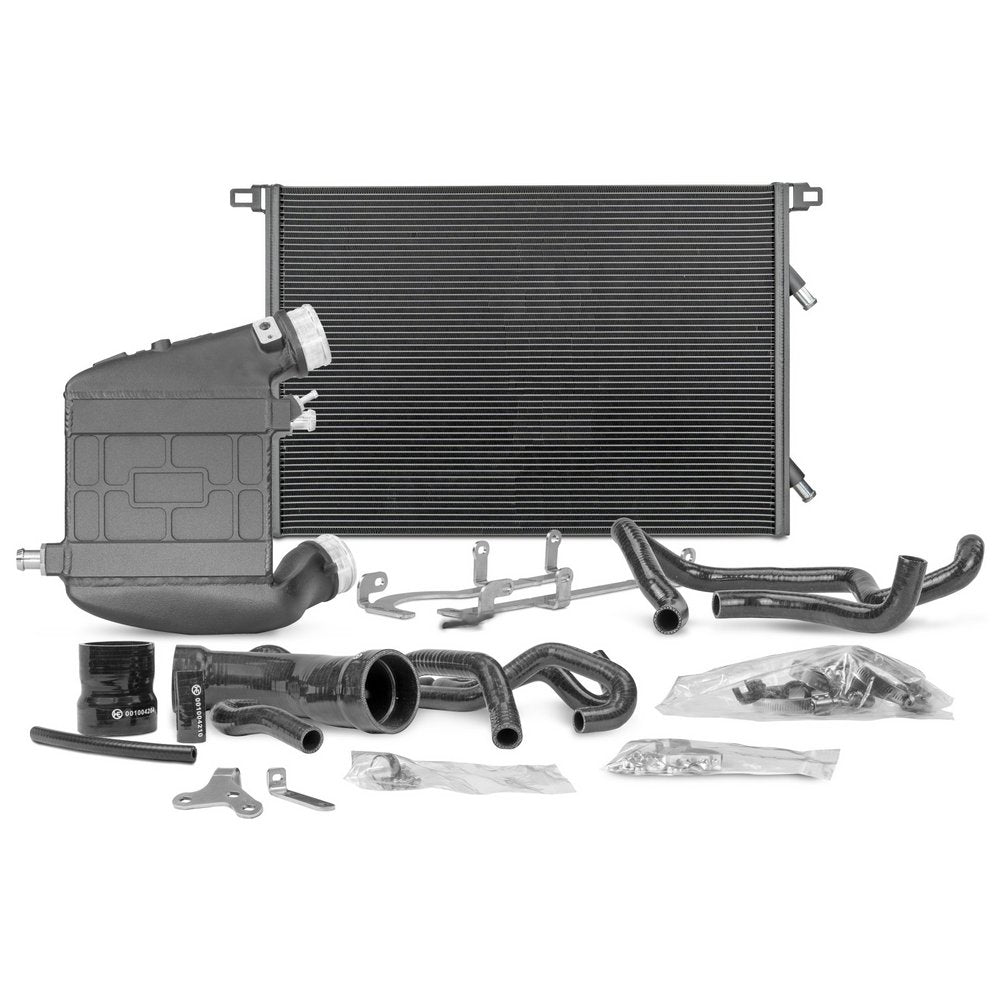

WAGNER TUNING Competition package water cooler / intercooler for Audi RS4 B9 2.9 TFSI

Experience ultimate performance with our Wagner Tuning Competition package for the Audi RS4 B9/ RS5 F5 consisting of the intercooler upgrade kit and the water cooler upgrade kit.
Audi RS4 B9 331KW/450PS from 2017
Audi RS5 F5 331KW/450PS from 2017

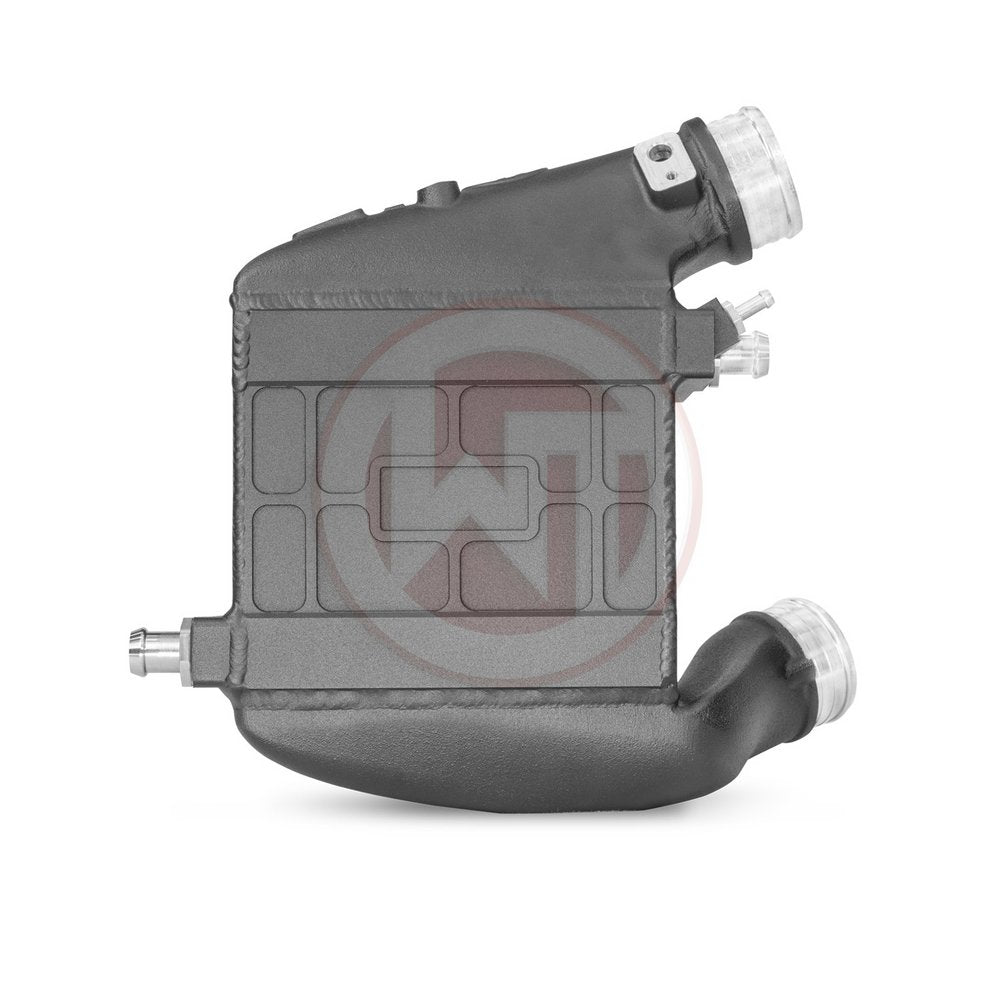

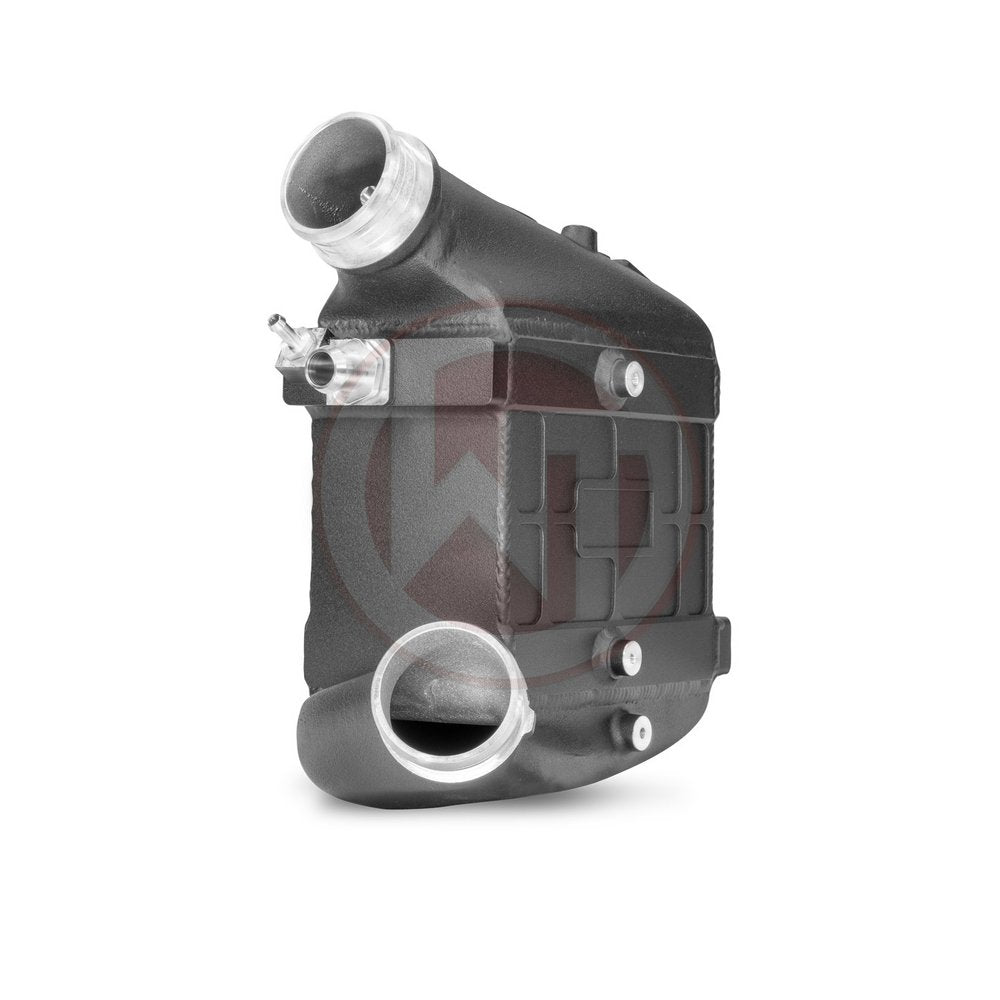

The intercooler upgrade kit 200001162
Our high-performance intercooler was specifically developed for the demanding 2.9-liter V6 biturbo engine (VW EA839) of the Audi RS4/RS5 models. It replaces the standard water-cooled intercooler and offers you a multitude of advantages.
With our innovative performance core, measuring 222 mm x 200 mm x 120 mm, we've increased the external core volume by an impressive 185%. The optimal ratio between inner and outer cooling surfaces ensures maximum heat transfer and optimal internal airflow. The cast aluminum end boxes were designed using CAD and perfected with the help of CFD simulations. The result is outstanding cooling properties with minimal backpressure. Our high-performance intercooler is therefore also ideally suited for racing and ensures optimal cooling of the charged air with a significant increase in performance.
For long-lasting and reliable cooling, all our Wagner Tuning intercoolers are equipped with a heat-conducting, anti-corrosion coating. Thanks to our detailed installation instructions, the system is easy to install and uses a plug-and-play process.
The advantages at a glance:
- Significantly improved cooling performance for optimal performance development
- Minimized back pressure for optimized performance
- More power and torque for a more intense driving experience
- Mechanical relief of the turbocharger for a longer service life
- 100% compressive strength for maximum reliability
- Simple and problem-free installation using the plug & play method
- Up to 4 years warranty for a worry-free driving experience
Take your Audi RS4/RS5 to a new level of performance with our WagnerTuning high-performance intercooler. Experience outstanding cooling performance and maximum performance at every race!
The Wagner Tuning Performance Intercooler Kit fits the following models:
Wagner Tuning Performance INTERCOOLER KIT Audi RS4 B9 / RS5 F5
OEM intercooler mesh dimensions:
220 mm x 100 mm x 85 mm
V = 1.87 liters
Wagner Tuning intercooler network dimensions:
222 mm x 200 mm x 120 mm
V = 5.33 liters
Article number: 200001162
Scope of delivery:
1 intercooler
2 silicone air hoses
6 cooling water hoses
1 mounting material
1 installation instructions

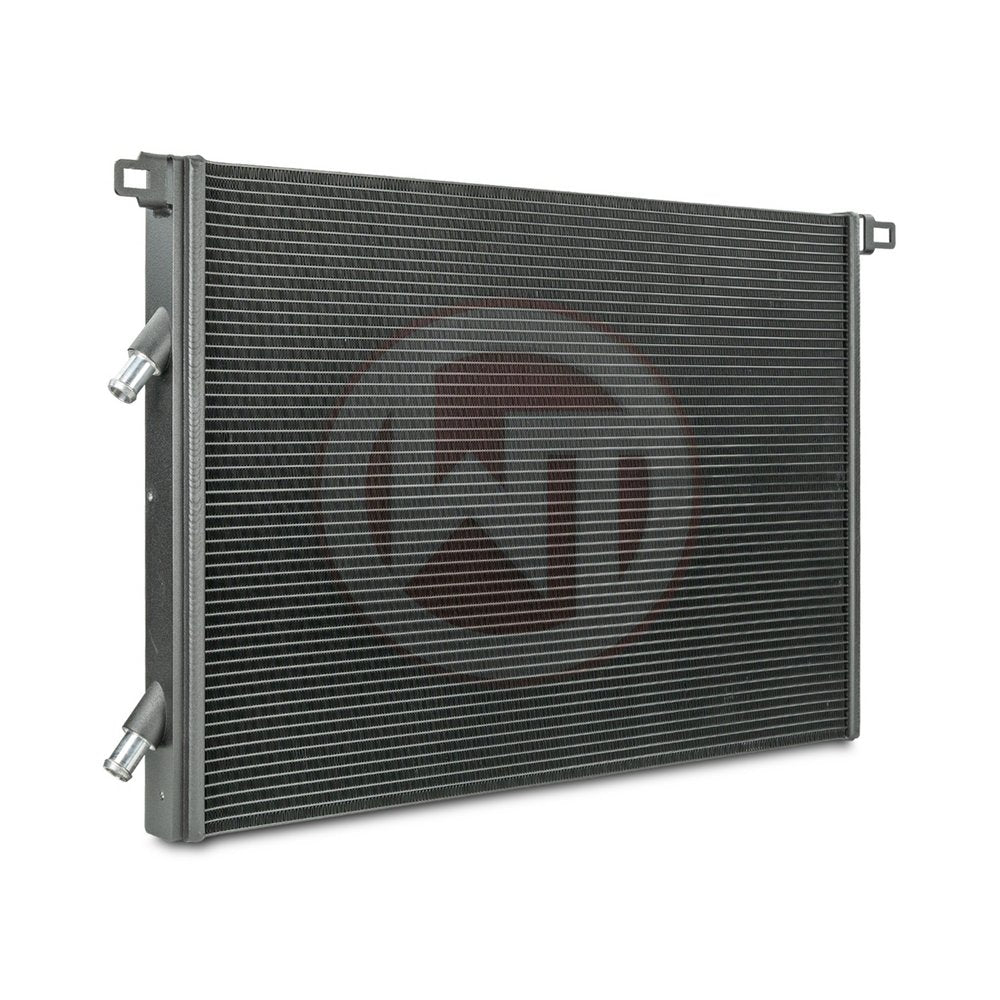

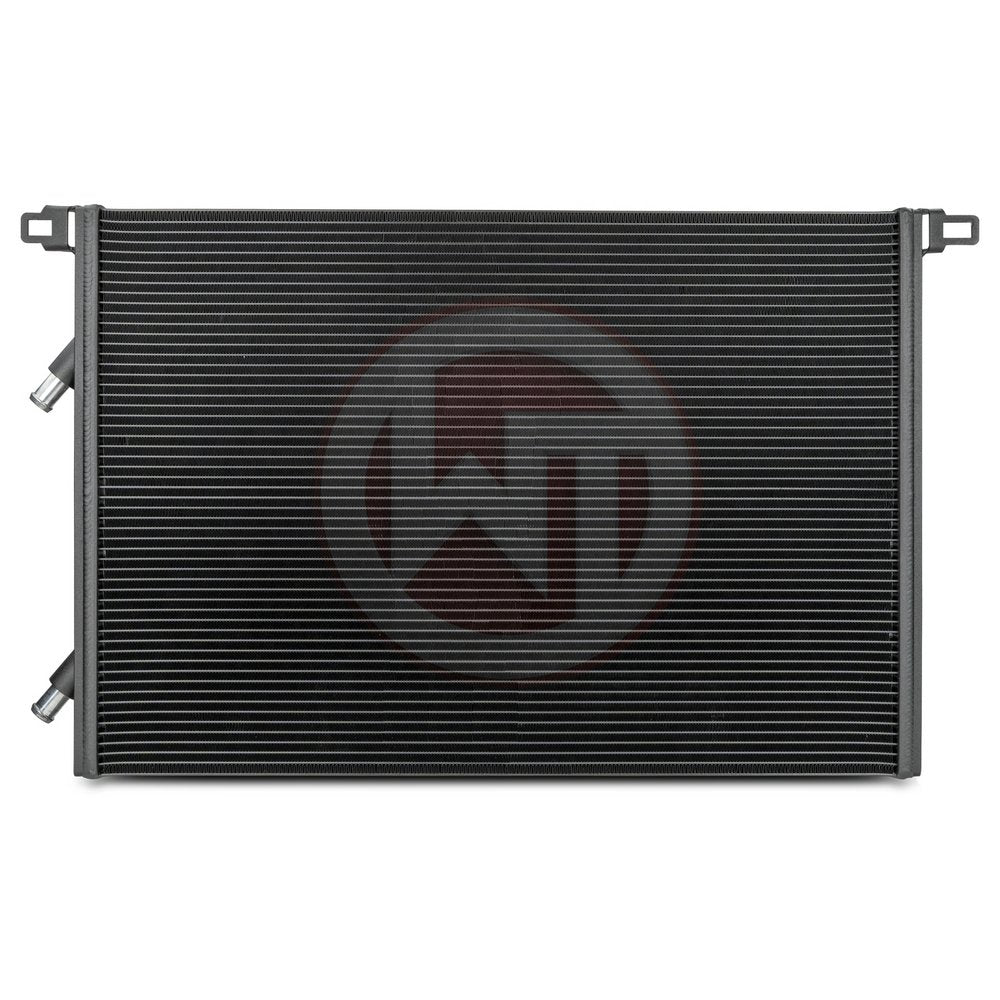

The water cooler upgrade kit 400001012
The 2.9L V6 twin-turbo engine in these models is equipped with an advanced indirect intercooling circuit. Unlike conventional systems, the charge air is cooled not by ambient air, but by a dedicated cooling water circuit. A reduction in the cooling water temperature therefore directly improves the cooling performance of the charge air. This is where the advantages of the Wagner Tuning Upgrade Water Cooler come into their own.
The newly developed Competition racing core of the Wagner Tuning high-performance radiator expands the radiator volume of the stock radiator by an impressive 55%. The optimized ratio between inner and outer cooling surfaces ensures maximum heat transfer while also ensuring sufficient airflow to adjacent components such as the engine radiator. Furthermore, the radiators are equipped with a heat-conducting, anti-corrosion coating that ensures long-term cooling. Installation of the system is straightforward and virtually plug & play thanks to our user-friendly installation instructions.
Experience the next level of performance with the Wagner Tuning Competition water cooler kit for your Audi RS4 B9 / RS5 F5 suitable for the following vehicles :
Audi RS4 B9 331KW/450PS from 2017
Audi RS5 F5 331KW/450PS from 2017
Dimensions OEM water cooler:
720 mm x 485 mm x 25 mm
V = 8.73 liters
A = 3492 cm²
Dimensions Wagner Tuning water cooler:
690 mm x 490 mm x 40 mm
V = 13.52 liters
A = 3381 cm²
Article number 400001012
