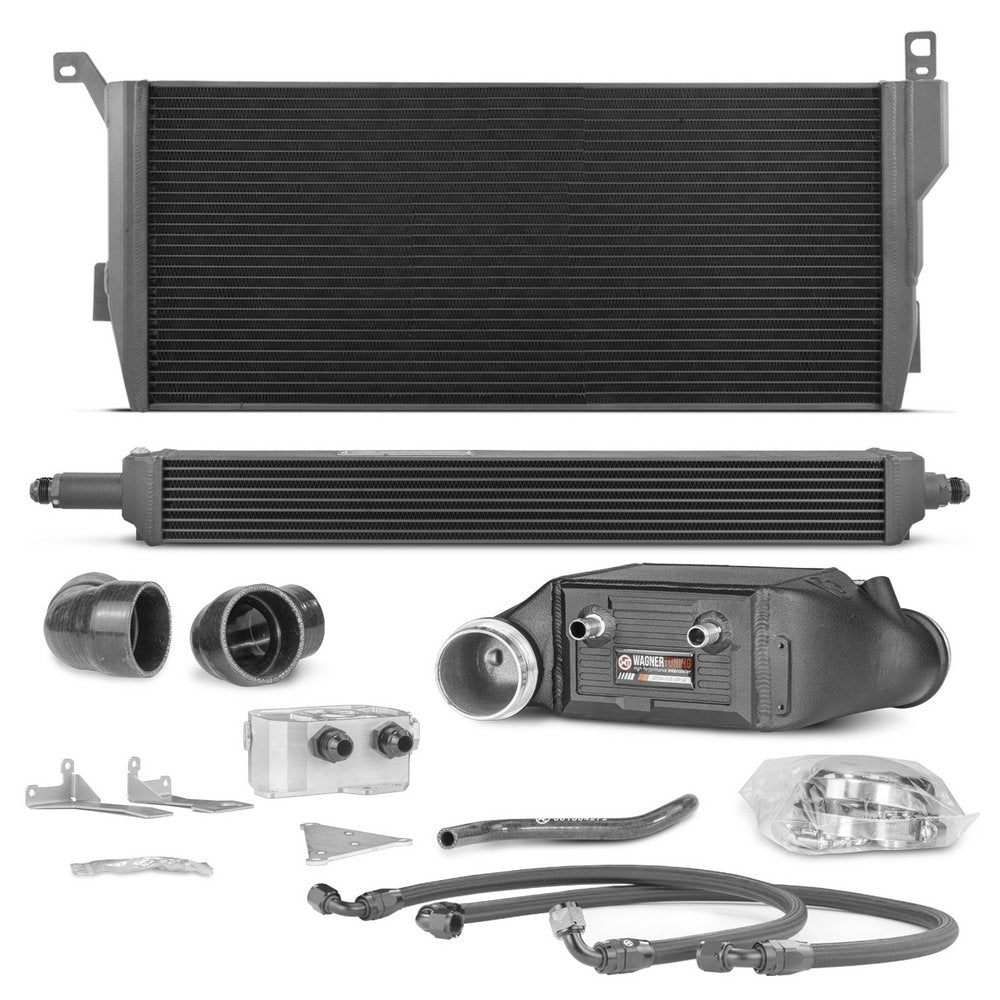

WAGNER TUNING Competition Package 2.0TDI water cooler / intercooler / oil cooler for VW Transporter T6 / T6.1 2.0 TDI

The Competition package for the VW T6 2.0TDI consists of the intercooler upgrade kit, the water cooler upgrade kit and the additional oil cooler kit.
Volkswagen T6 2.0 TDI: 110KW/150 HP (2016-2019)
Volkswagen T6.1 2.0 TDI: 110KW/150 HP (2019-)

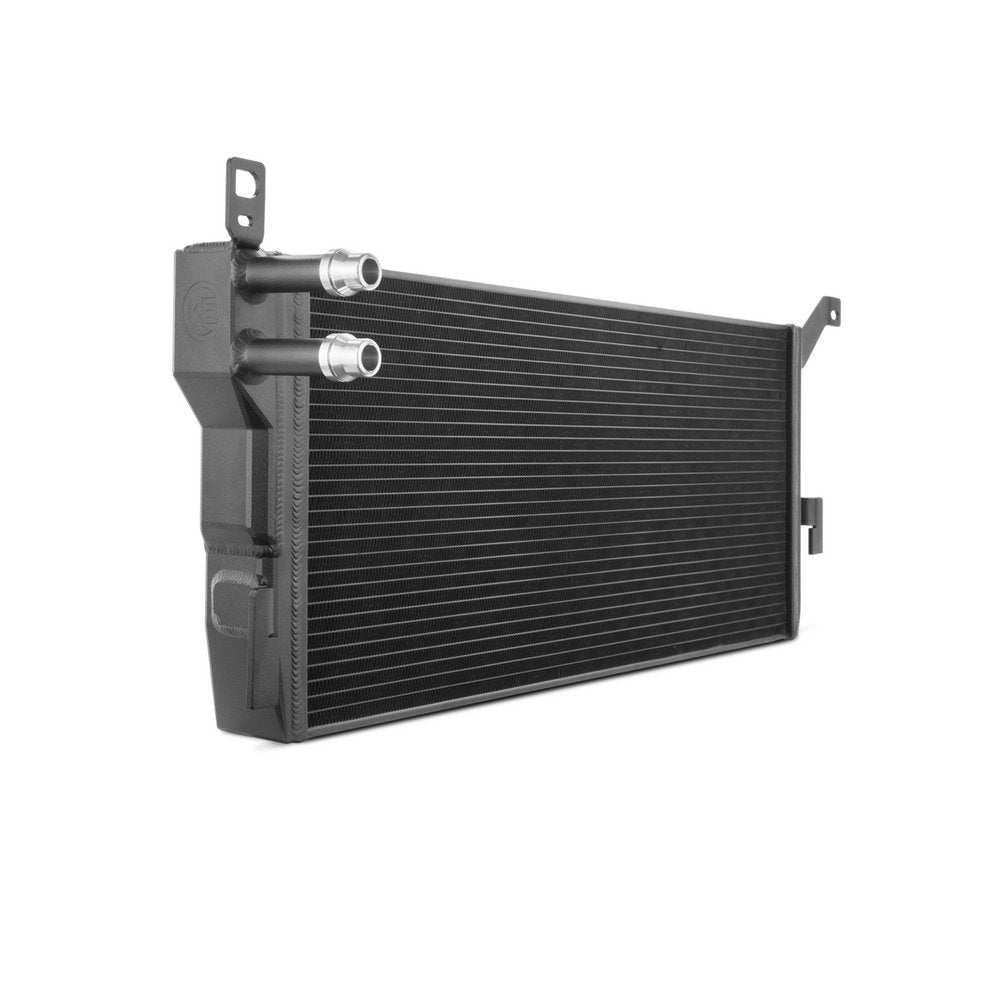

The water cooler upgrade kit 400001019
The 2.0-liter TDI engine in the VW T6/T6.1 is equipped with an indirect intercooling circuit, which cools the charge air not with ambient air as usual, but with its own cooling water circuit. Reducing the cooling water temperature directly improves the cooling performance of the charge air. This is where the advantages of our Wagner Tuning Upgrade water coolers come into play.
Our newly developed Competition racing cores increase the cooling volume of the stock radiators by an impressive 30%. The ratio of inner to outer cooling surface ensures maximum heat transfer while allowing sufficient airflow for adjacent components such as the engine radiator. The increased cooling water volume allows overall system thermals to be maintained at a lower level for a longer period of time.
All Wagner Tuning water coolers are equipped with a heat-conducting, anti-corrosion coating that ensures lasting cooling. Thanks to our detailed installation instructions, installing the system is straightforward and virtually plug & play.
Prepare your VW T6/T6.1 2.0 TDI for maximum performance and optimal cooling with our Competition water cooler kit.
Competition water cooler kit for the VW T6/T6.1 2.0 TDI is suitable for the following models:
Volkswagen T6 2.0 TDI: 62-110KW/84-150 HP (2016-2019)
Volkswagen T6.1 2.0 TDI: 66-110KW/84-150 HP (2019-)
Dimensions OEM water cooler:
714 mm x 245 mm x 54 mm
V = 9.5 liters
A = 1750 cm²
Dimensions Wagner Tuning water cooler:
710 mm x 311 mm x 56 mm
V = 12.4 liters (+30%)
A = 2208 cm² (+26%)
Article number 400001019
Scope of delivery:
1x front water cooler black coated (low temperature circuit)
1x installation instructions

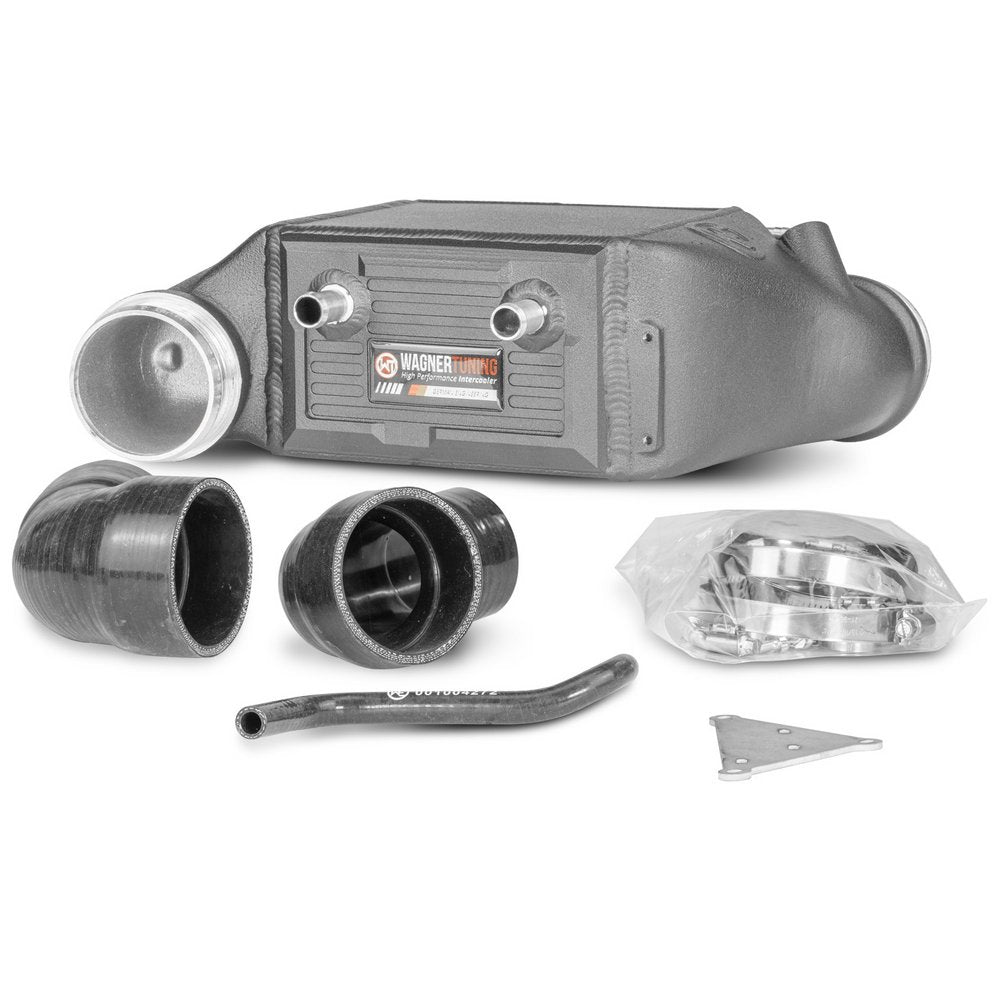

the intercooler upgrade kit 200001184
The 2.0-liter TDI engine in the VW T6 models comes standard with an indirect intercooling circuit, where the charge air is cooled by a water-cooled intercooler. But now you can unleash your engine's full potential by replacing the original intercooler with our groundbreaking high-performance intercooler from Wagner Tuning.
The Wagner Tuning high-performance intercooler impresses with a new performance core measuring 150mm x 185mm x 114mm, which was specifically developed for the demanding requirements of the VW engine. With 106% more external core volume compared to the original intercooler, this high-performance master sets new standards. The perfect ratio between inner and outer cooling surfaces enables maximum heat transfer while ensuring optimal internal airflow. The cast aluminum end boxes were optimized using CAD design and CFD simulations to achieve excellent cooling properties with minimal backpressure. Enjoy optimal cooling of the charged air and feel the significant increase in power!
Our Wagner Tuning intercoolers are equipped with a heat-conducting, anti-corrosion coating that ensures lasting cooling. Installation of the system is straightforward and can be completed in a snap using our plug-and-play installation instructions.
The advantages of this product are manifold:
- Achieve significantly improved cooling performance
- Feel a power and torque boost for your engine
- Relieve the load on the turbocharger mechanically
- 100% compressive strength for maximum reliability
- Simple and hassle-free plug-and-play installation
- Benefit from up to 4 years of warranty to protect your investment.
Choose the Wagner Tuning high-performance intercooler and experience a new era of performance and driving pleasure. Give your VW T6/T6.2 TDI the upgrade it deserves.
Replaces the original intercooler: 04L145749L, 04L145749J (NOT 04L145749F)
Performance intercooler kit suitable for the following models:
Volkswagen T6 2.0 TDI: 62-110KW/84-150 HP (2016-2019)
Volkswagen T6.1 2.0 TDI: 66-110KW/84-150 HP (2019-)
OEM intercooler mesh dimensions:
137mm x 167mm x 67mm
V = 1.53 L
Wagner Tuning intercooler network dimensions:
150mm x 185mm x 114mm
V = 3.16 L (+106%)
Article number: 200001184
Scope of delivery:
Please select the desired version.

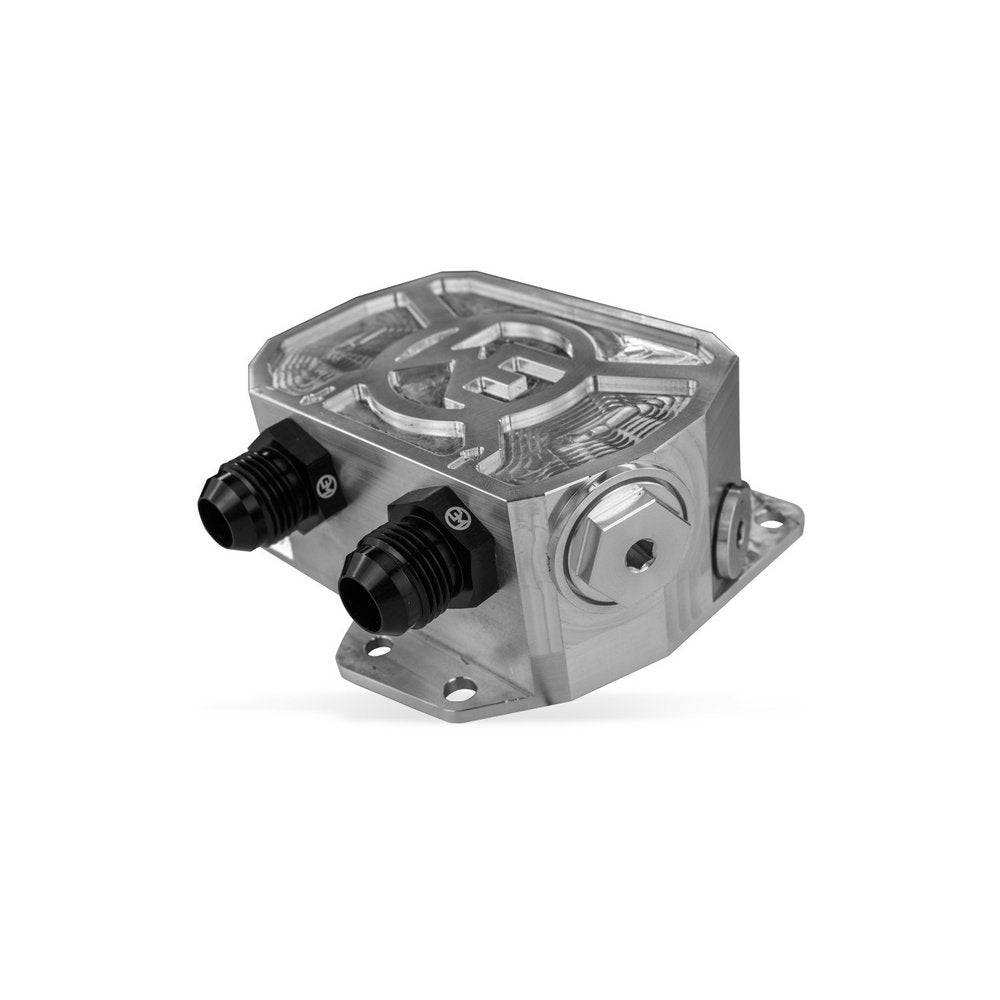

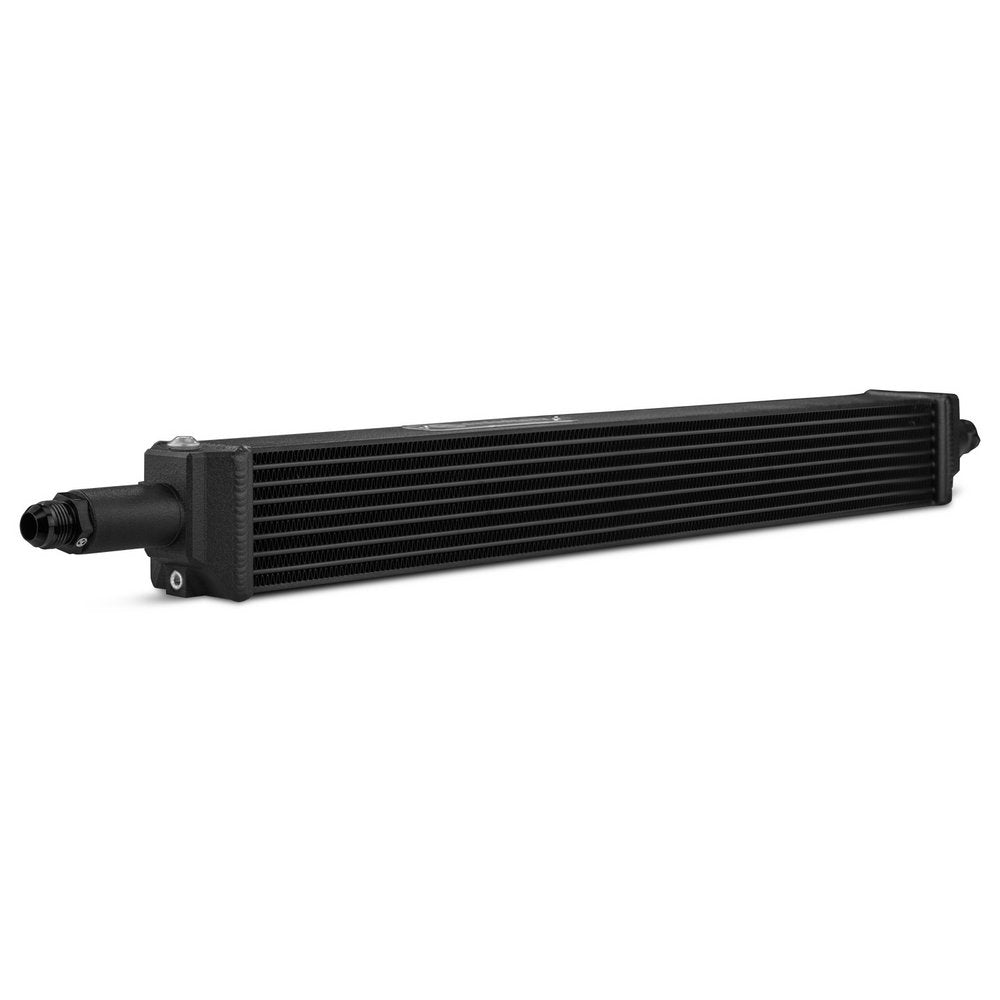

the oil cooler kit 250001002
Volkswagen T6 2.0 TDI: 110KW/150 HP (2016-2019) MKB: CXHA; CXFA
Volkswagen T6.1 2.0 TDI: 110KW/150 HP (2019+) engine code: DNAA
(for the smaller engines the water cooler must be changed 7E0121212B)
*ATTENTION! Not suitable for vehicles with the older VW EA189 engine series.
The high-quality WagnerTuning oil cooler kit prevents excessively high oil temperatures and is therefore a must for all VW T6 2.0(Bi)TDI vehicles.
Due to the additional cooling surface, the oil temperature is optimally cooled even under high loads, thus ensuring a constant oil pressure.
Characteristics:
7 row all-aluminum oil cooler
guarantees optimal oil cooling even in performance-enhanced vehicles
Plug & Play installation including adapter plate and thermostat
Scope of delivery:
1x oil cooler (black coated)
1x mounting material
Please note: According to the KBA (German Federal Motor Transport Authority), oil coolers are not subject to approval! Registration can therefore be made even without a parts certificate.
We recommend replacing the following OEM seals with new ones for installation. These are not included in the scope of delivery.
3 pieces 03N 117 070
1 pc. 03N 115 441
Furthermore, a slight whirring noise may occur after installing the kit. This noise is caused by the pulsation of the oil within the lines. By routing the lines as isolated as possible from the body and its components, this noise can be minimized to the point where it is barely noticeable.
