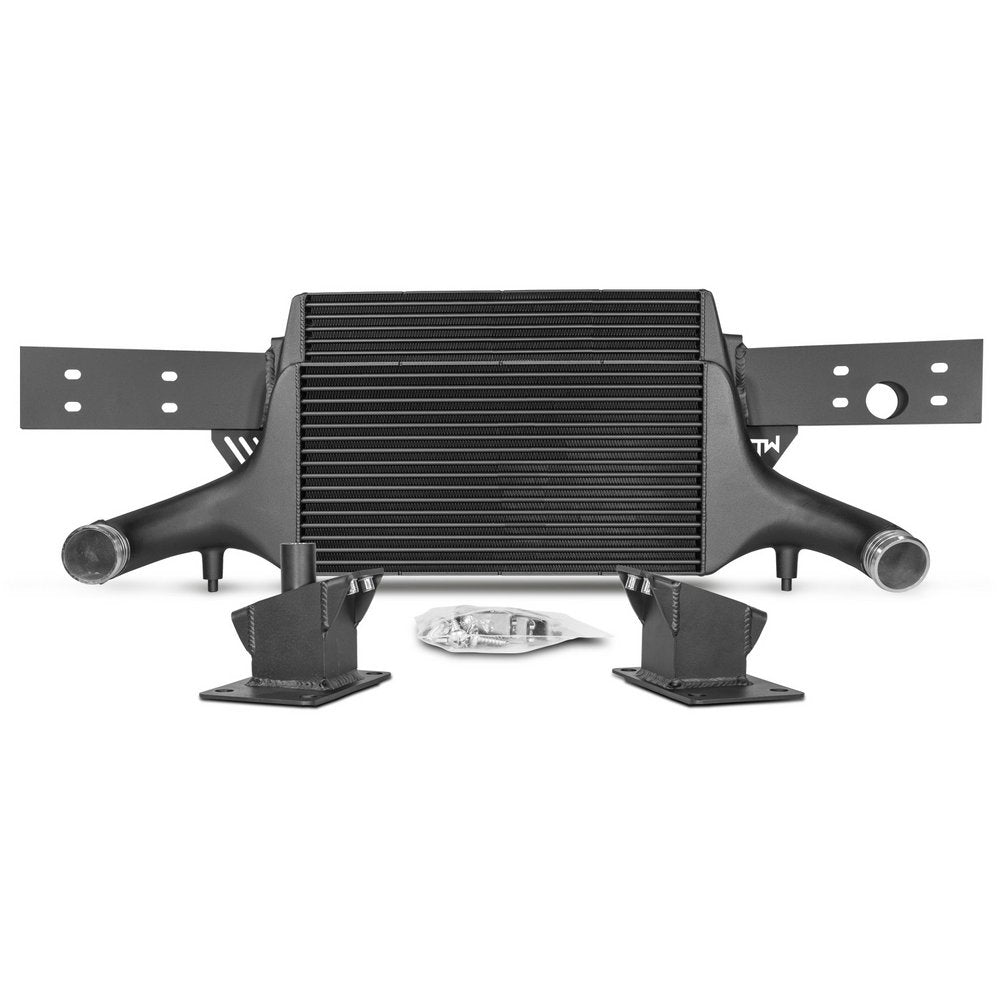

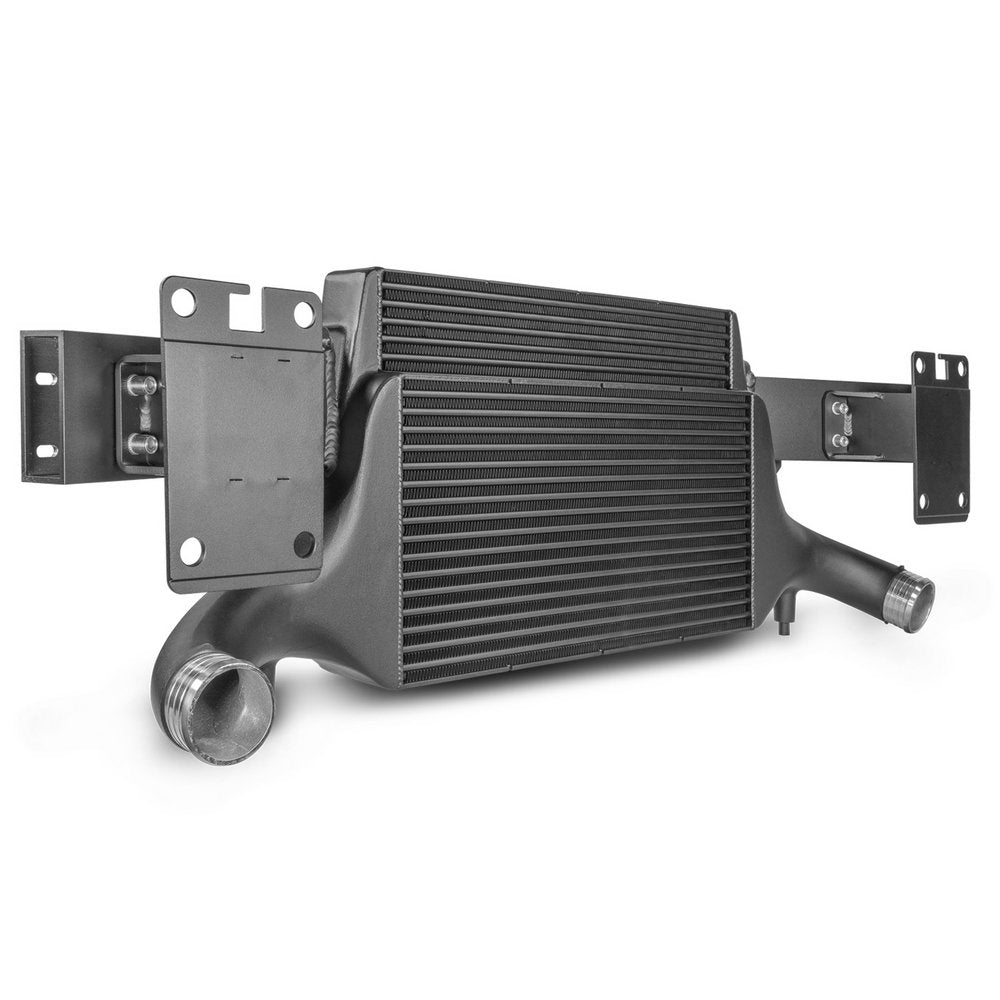

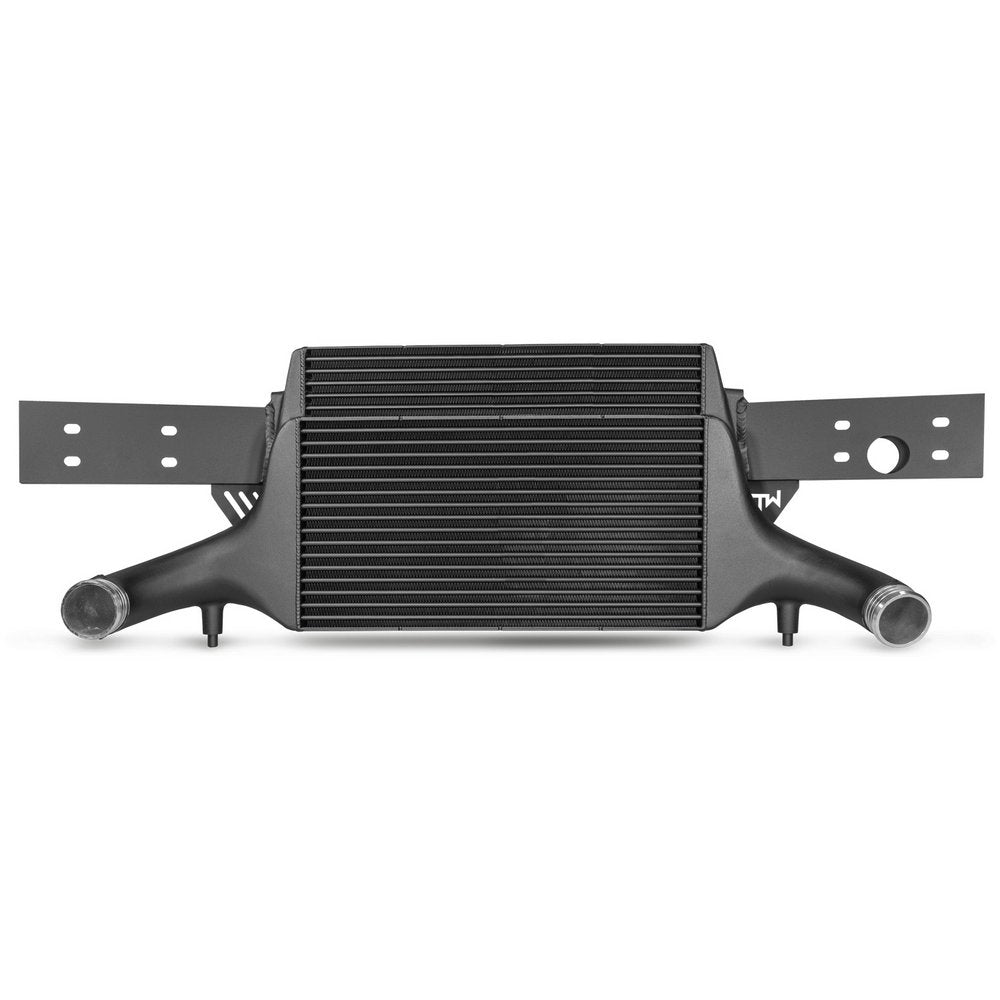

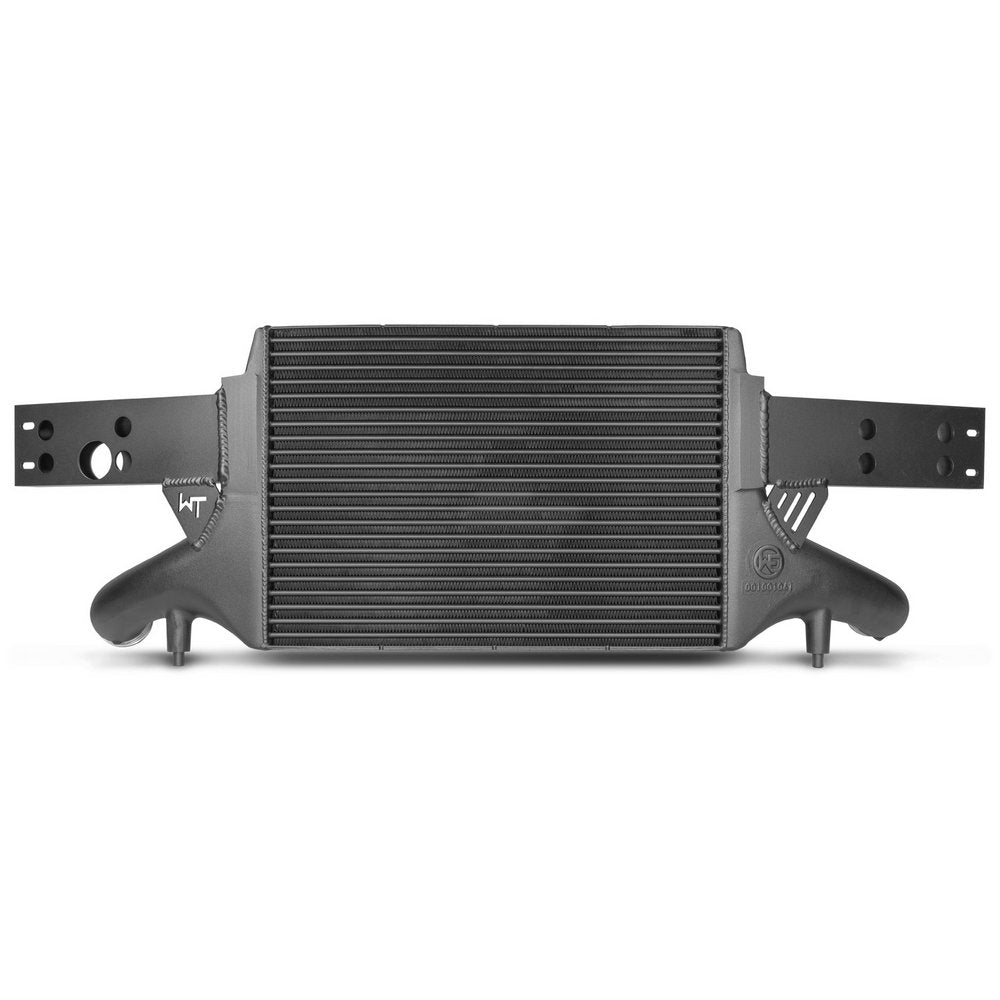

WAGNER TUNING Competition Intercooler Kit EVO3 for Audi TTRS 8S 2.5 TFSI
Price:
Regular price
1.830,00 €
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
SKU: 200001136
information
information on product safety
Competition intercooler kit EVO3 for Audi TTRS 8S now available with TÜV parts certificate and in two different mesh variants
Advantages of the Wagner Tuning intercooler:
- Improved cooling performance
- 84% larger inflow area
- 101% more charge air volume
- Weight 11.7 kg
- flow-optimized
- less back pressure
- original attachment points
Important: We recommend using the standard version for power classes up to 600hp and the X-version for power classes from 600hp.

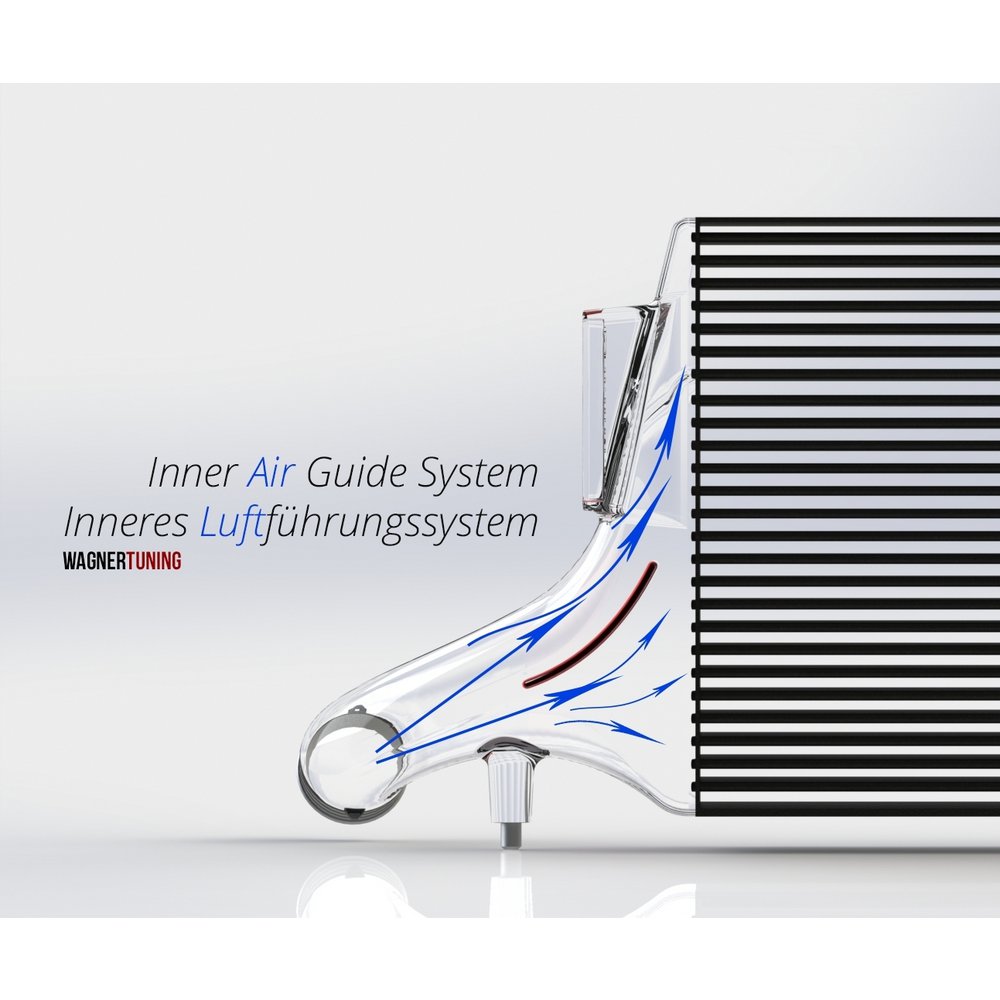

The high-performance intercooler has the following core dimensions (515mm x 367mm x 95mm [stepped] = 16,500cm³), offering an 84% larger inlet area and 101% more charge air volume compared to the original intercooler. The newly developed Competition high-performance core ensures sufficient airflow to adjacent components, such as the radiator. It is a high-quality tube fin core with internal turbulators. The intercooler end boxes are made of cast aluminum and were optimized using flow analysis in a CFD system. Integrated air baffles in the inlet ensure even filling of the intercooler. The result is excellent cooling properties with minimal backpressure. This kit is therefore suitable for racing. In addition, all of our intercoolers feature an anti-corrosion coating with heat-conducting properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. The intercooler and the original crossmember form a stable unit and, thanks to the new Competition high-performance mesh, weigh just 11.7 kg. Installation is carried out using the original mounting points and is easy to perform (see installation instructions for minor adjustments). Tested up to 6 bar and pressure-resistant. All our products are subject to continuous quality control.
OEM intercooler:
Cooling surface 1024cm² / Charge air volume 8.2L
Inlet and outlet Ø68mm
Wagner Tuning EVO 3 Competition:
Cooling surface 1890cm² / Charge air volume 16.5L
Inlet and outlet Ø68mm
Scope of delivery:
1 intercooler together with the cross member
1 fastening material
1 installation instructions
1 TÜV parts certificate (only for vehicles without OPF)
Advantages of the Wagner Tuning intercooler:
- Improved cooling performance
- 84% larger inflow area
- 101% more charge air volume
- Weight 11.7 kg
- flow-optimized
- less back pressure
- original attachment points
Important: We recommend using the standard version for power classes up to 600hp and the X-version for power classes from 600hp.
The high-performance intercooler has the following core dimensions (515mm x 367mm x 95mm [stepped] = 16,500cm³), offering an 84% larger inlet area and 101% more charge air volume compared to the original intercooler. The newly developed Competition high-performance core ensures sufficient airflow to adjacent components, such as the radiator. It is a high-quality tube fin core with internal turbulators. The intercooler end boxes are made of cast aluminum and were optimized using flow analysis in a CFD system. Integrated air baffles in the inlet ensure even filling of the intercooler. The result is excellent cooling properties with minimal backpressure. This kit is therefore suitable for racing. In addition, all of our intercoolers feature an anti-corrosion coating with heat-conducting properties. This guarantees long-lasting and optimal cooling with a significant increase in performance. The intercooler and the original crossmember form a stable unit and, thanks to the new Competition high-performance mesh, weigh just 11.7 kg. Installation is carried out using the original mounting points and is easy to perform (see installation instructions for minor adjustments). Tested up to 6 bar and pressure-resistant. All our products are subject to continuous quality control.
OEM intercooler:
Cooling surface 1024cm² / Charge air volume 8.2L
Inlet and outlet Ø68mm
Wagner Tuning EVO 3 Competition:
Cooling surface 1890cm² / Charge air volume 16.5L
Inlet and outlet Ø68mm
Scope of delivery:
1 intercooler together with the cross member
1 fastening material
1 installation instructions
1 TÜV parts certificate (only for vehicles without OPF)
