coilover suspension V3 Racing

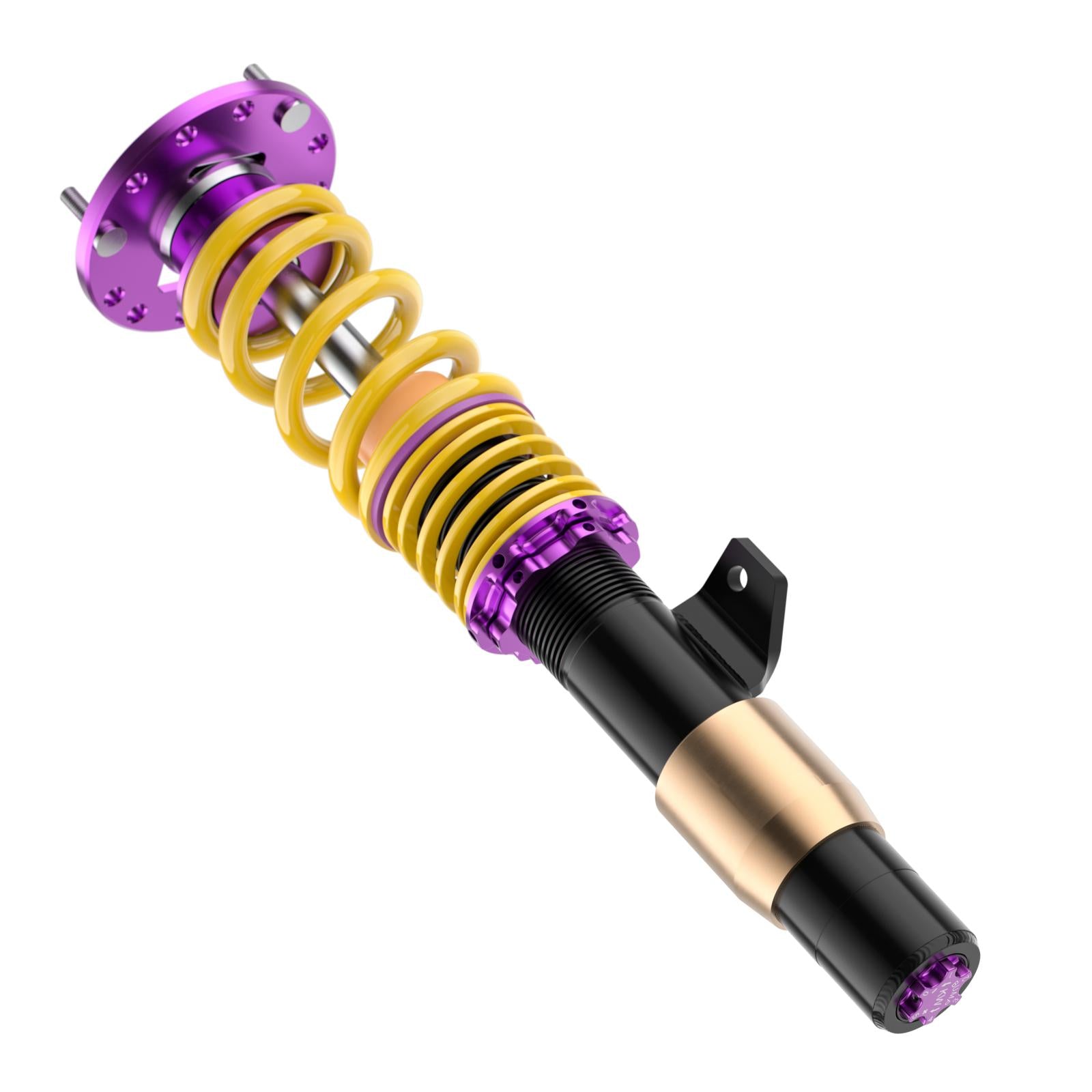

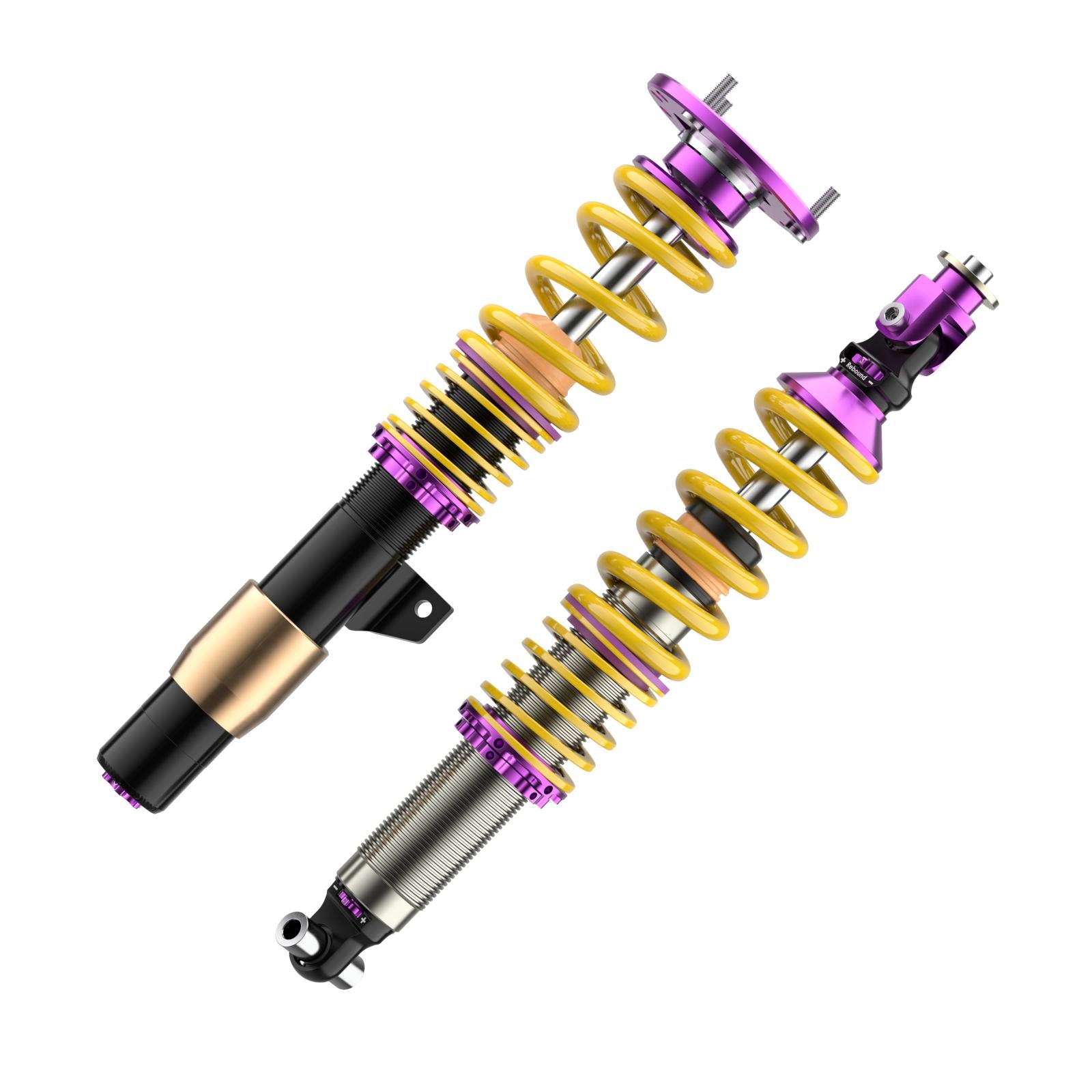

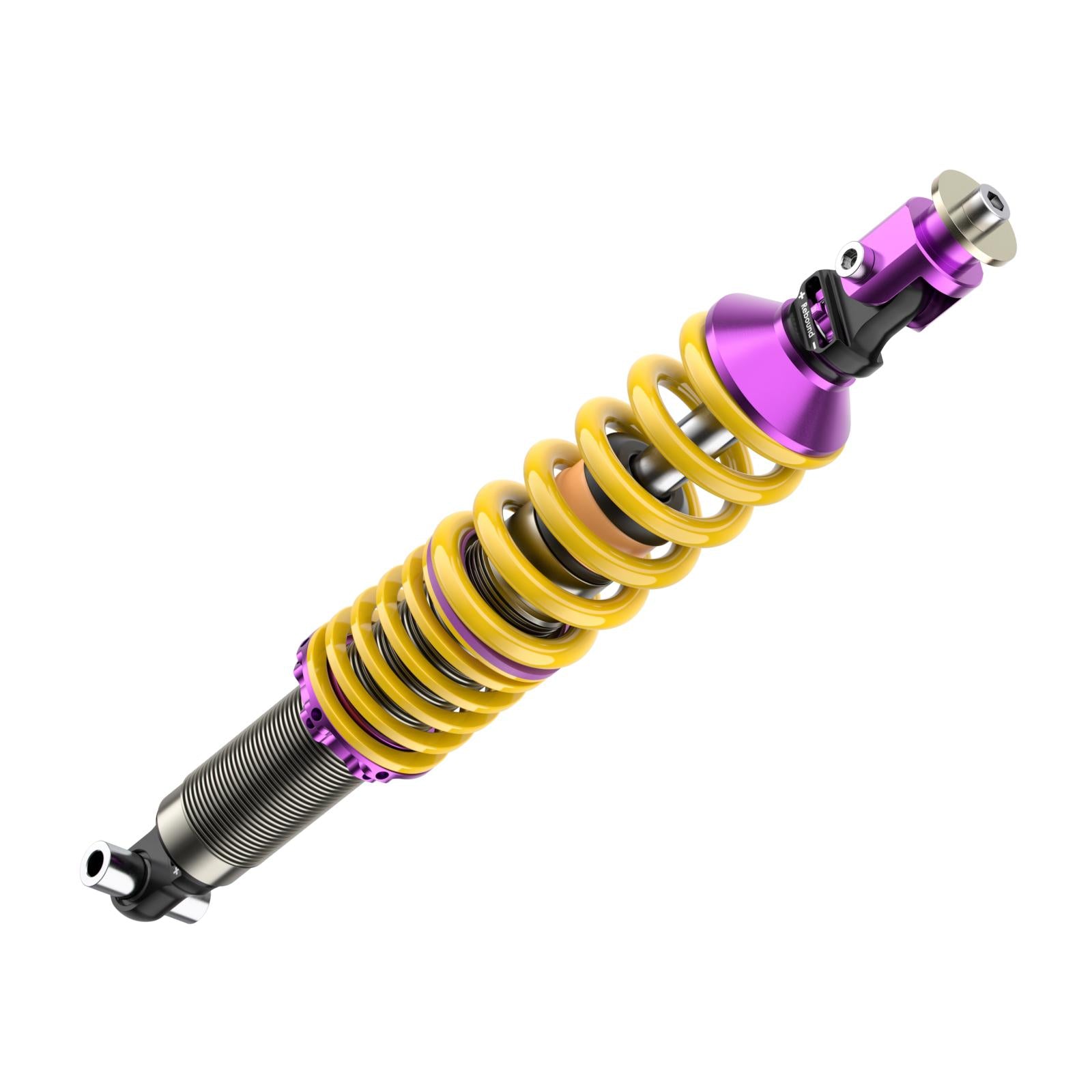

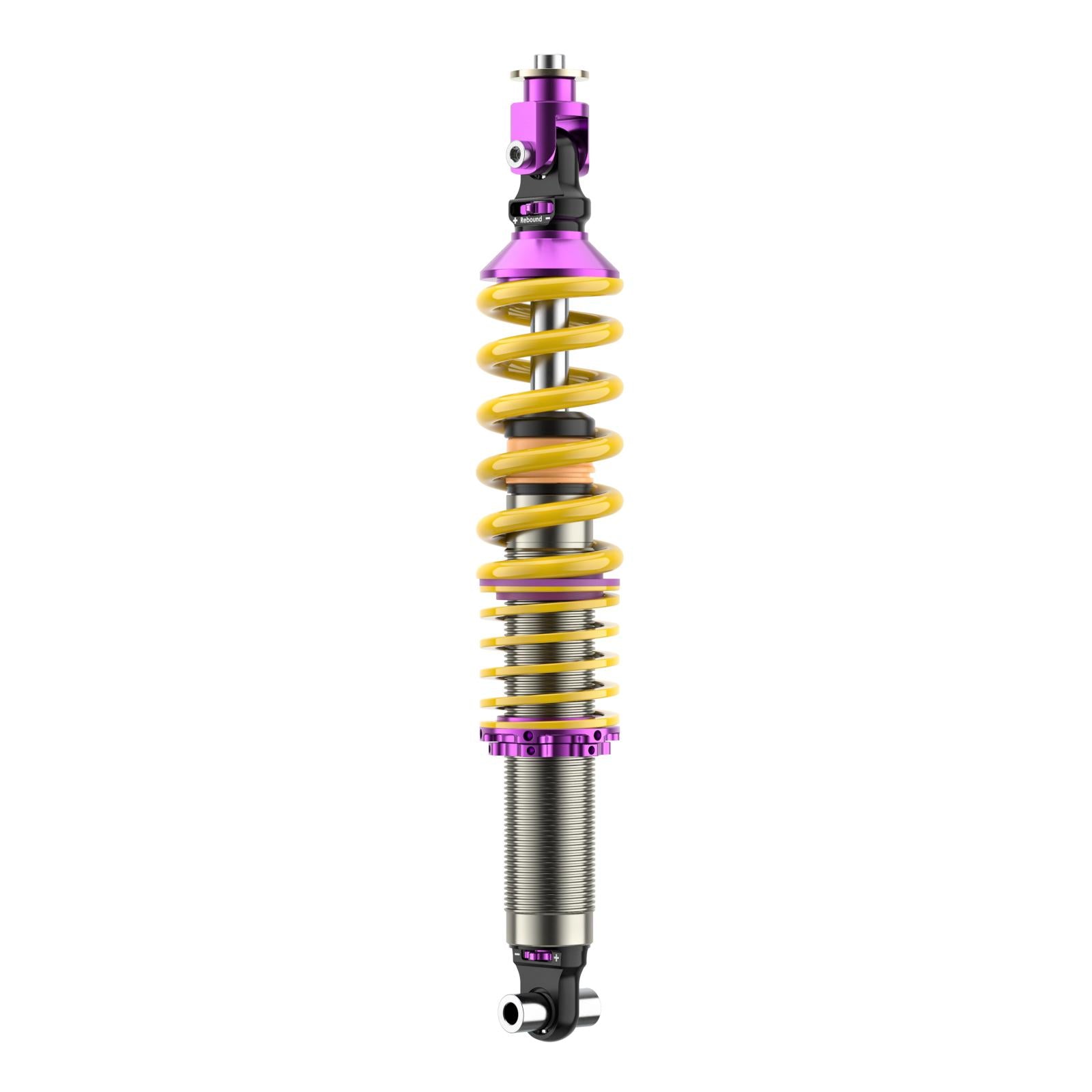

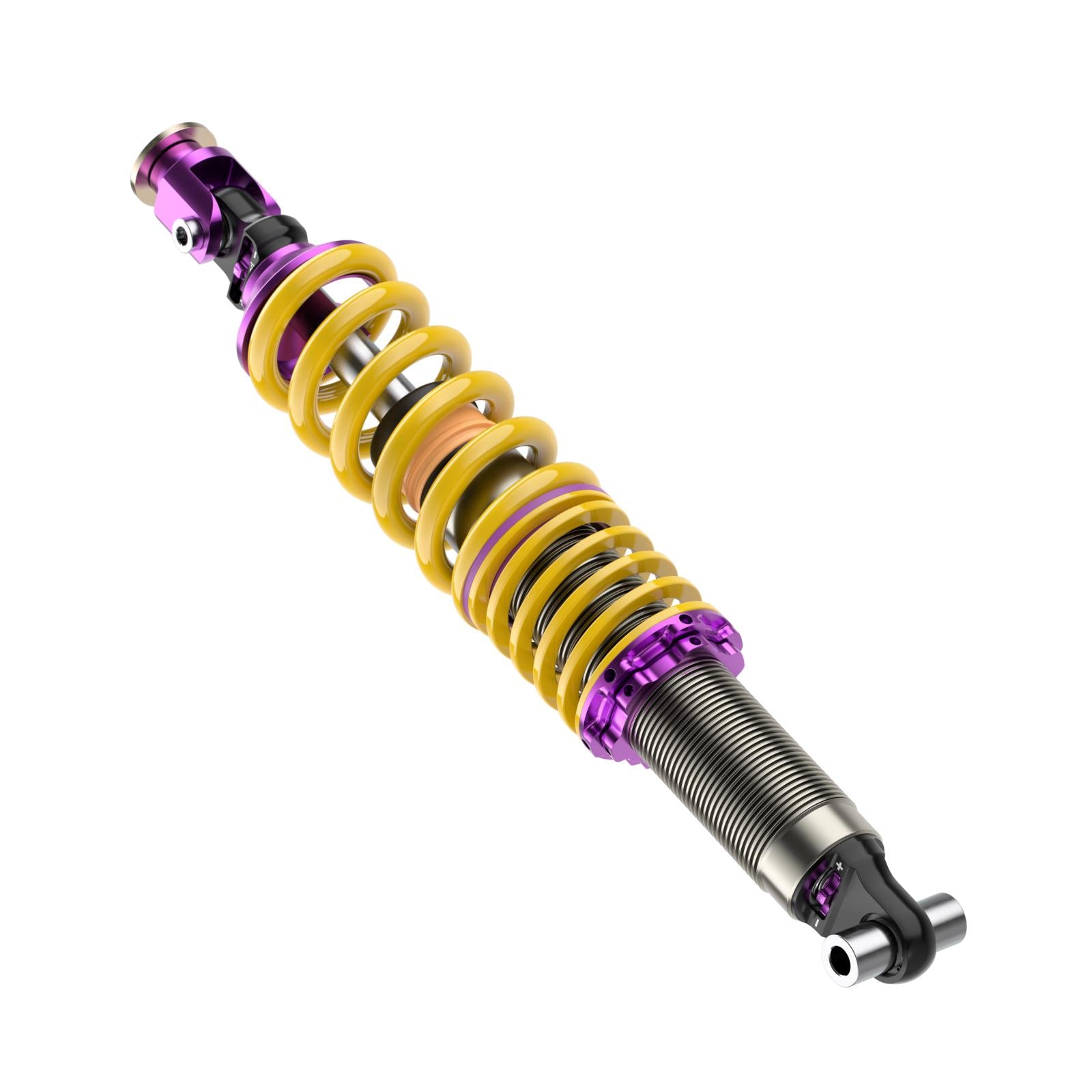

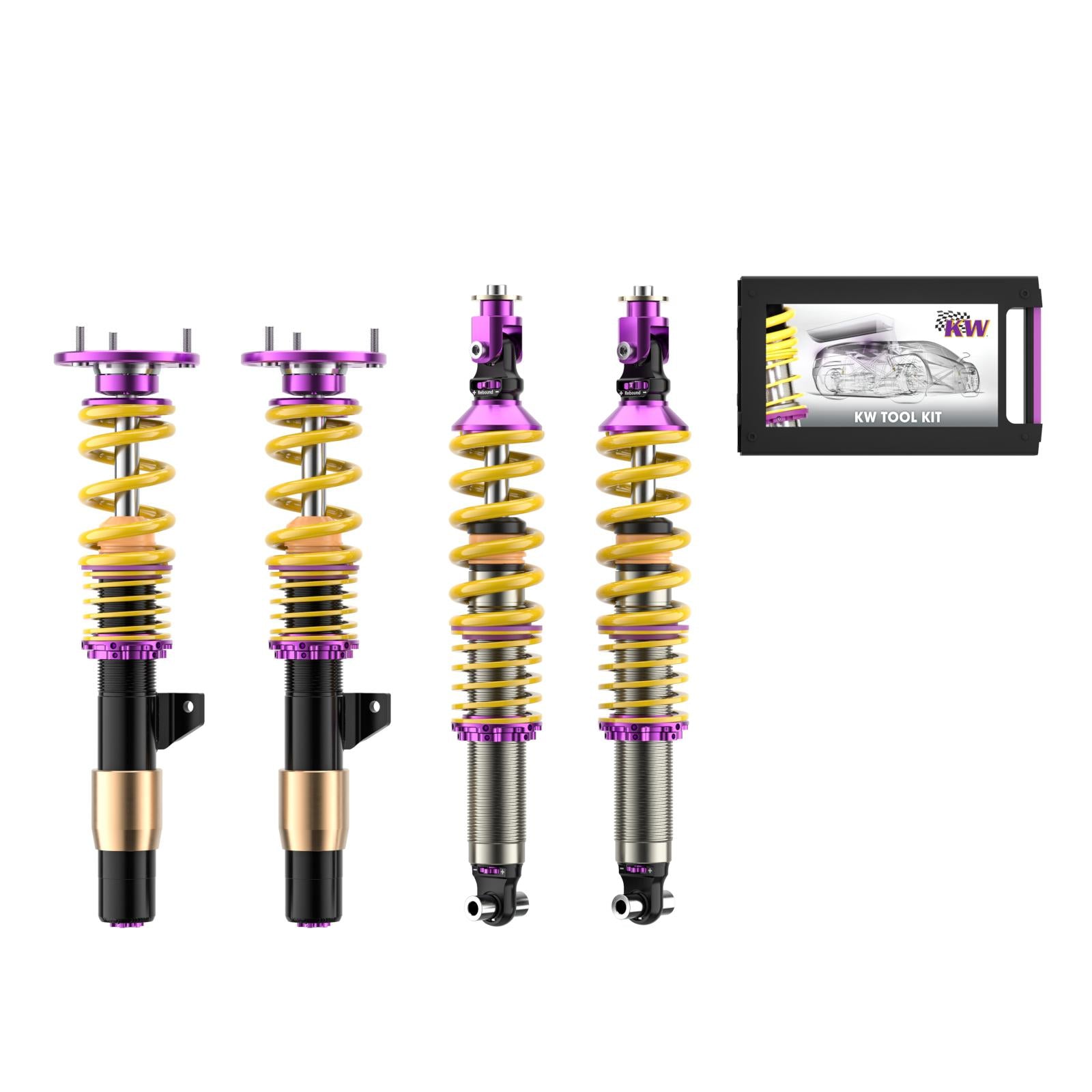

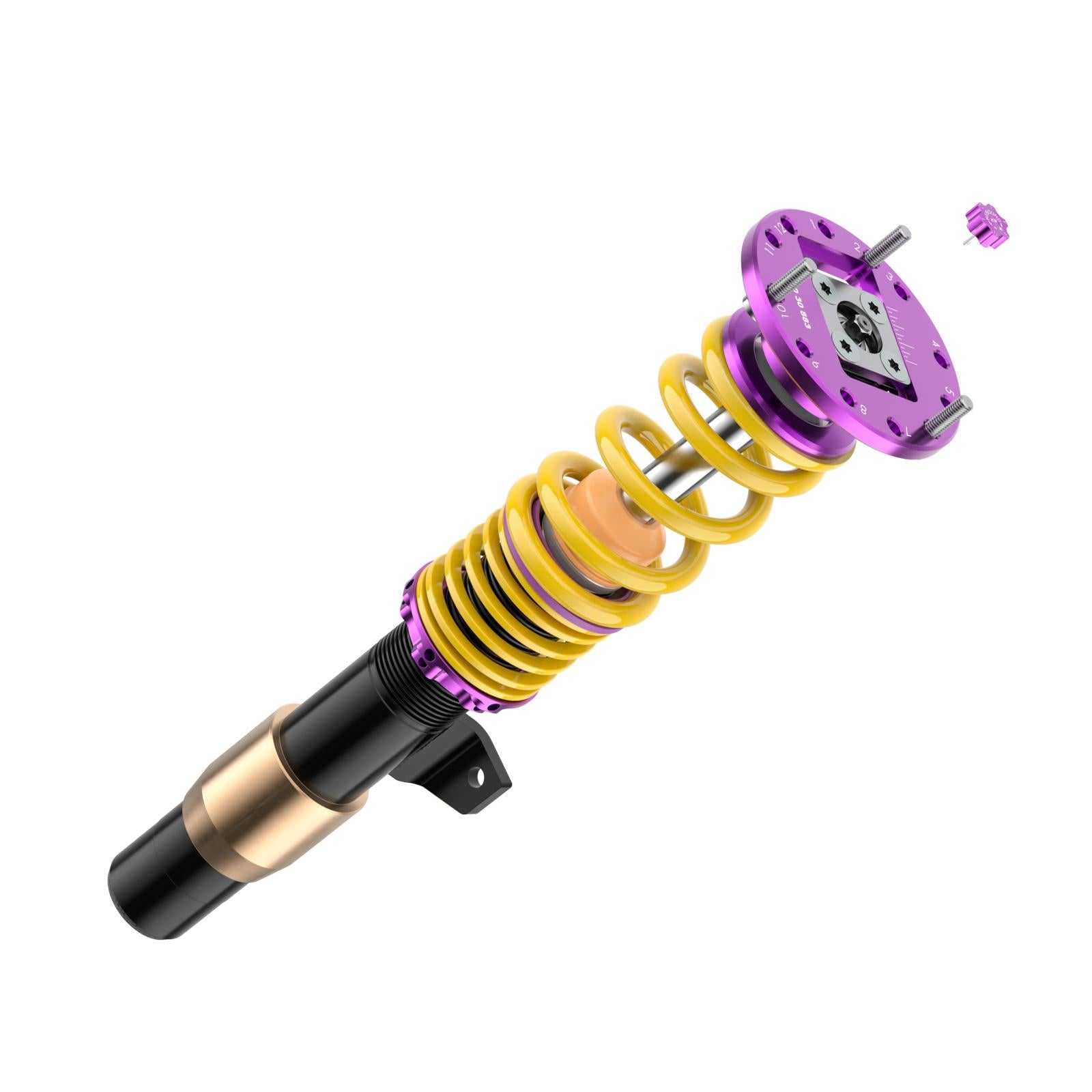

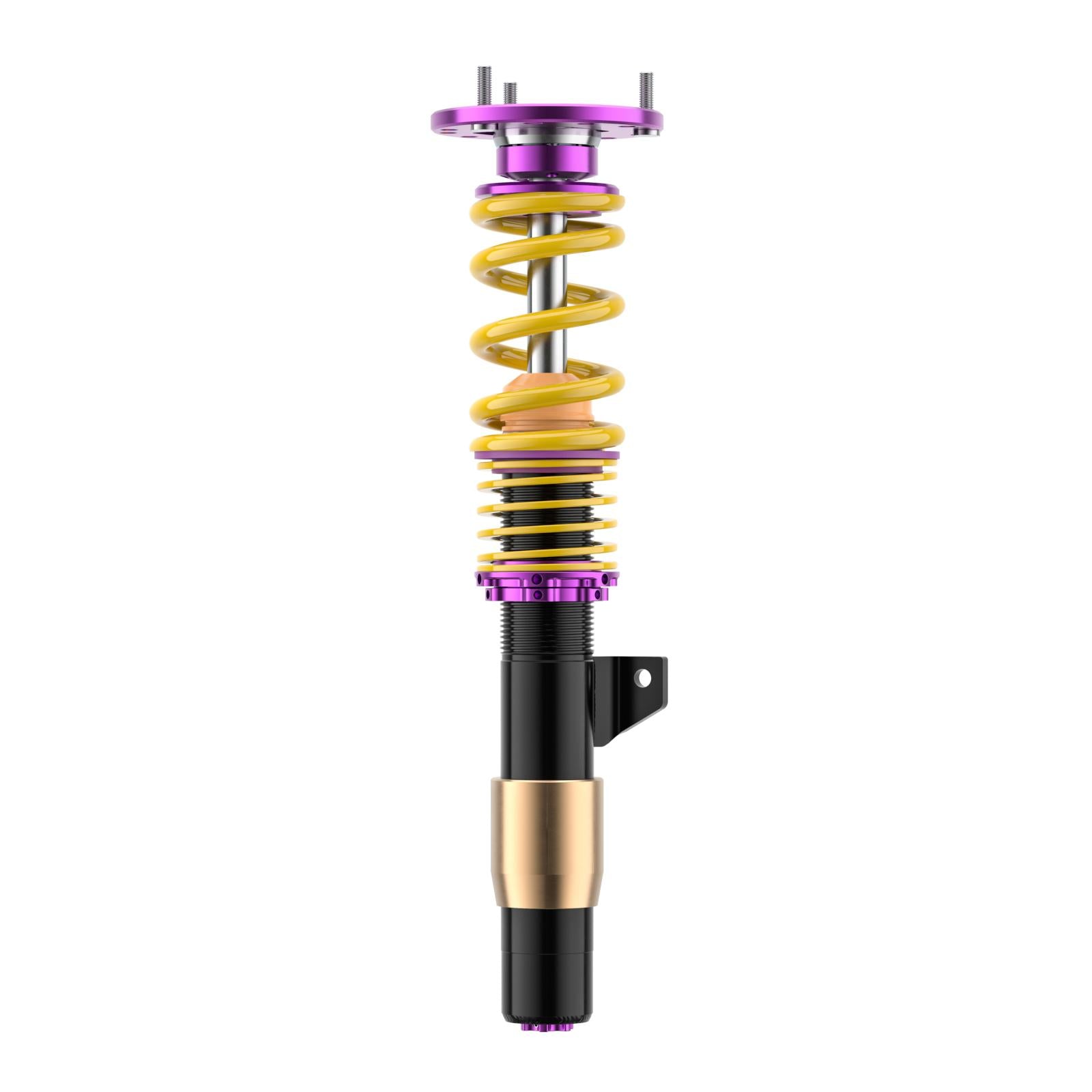

KW V3 Racing – dual adjustable racing technology for the circuit


The KW V3 Racing racing suspension is the entry-level model in our motorsport program with multi-adjustable damper technology. The KW V3 Racing can be independently adjusted in the low-speed forces of the compression and rebound stages. In comparison to a KW V3 Clubsport coilover suspension, the KW V3 Racing does not have a parts certificate and its entire design is developed exclusively for track day and circuit use.

Uncompromising motorsport performance without compromise

The KW V3 Racing racing suspension is a vehicle-specific motorsport application and is available in different versions for a wide range of vehicles.

Many of our motorsport customers opt for a KW V3 Racing if they want to take part in various circuit races with their racing vehicles, such as the Nürburgring Circuit Challenge eV or track days with non-road-legal vehicles. The KW V3 Racing is designed in its entirety to be vehicle-specific for the Nürburgring Nordschleife in terms of axle geometry, ground clearance, damping, spring rates, spring travel and wheel loads. Depending on the vehicle, the KW V3 Racing is manufactured with damper housings made of high-strength aluminum or galvanized steel or as MacPherson struts directly in Fichtenberg after the order has been received.

The damper characteristics of the chassis, which can be separately adjusted with twelve clicks in the low-speed compression stage and with 16 clicks in the low-speed rebound stage, enable extensive characteristic curve design. Each click ensures individual adjustment.

- Aluminium unibal support bearings (depending on the vehicle, the camber is adjustable)
- Linear high-strength racing springs
- Adjustable compression damping in low speed
- Adjustable rebound damping in low speed
- Damper housing made of high-strength aluminum or galvanized steel

EAN Code: 4251778311409
Packaging Length (cm): 76
Packaging Width (cm): 46.0
Packaging Height (cm): 15
Packaging Weight (kg): 24.90
