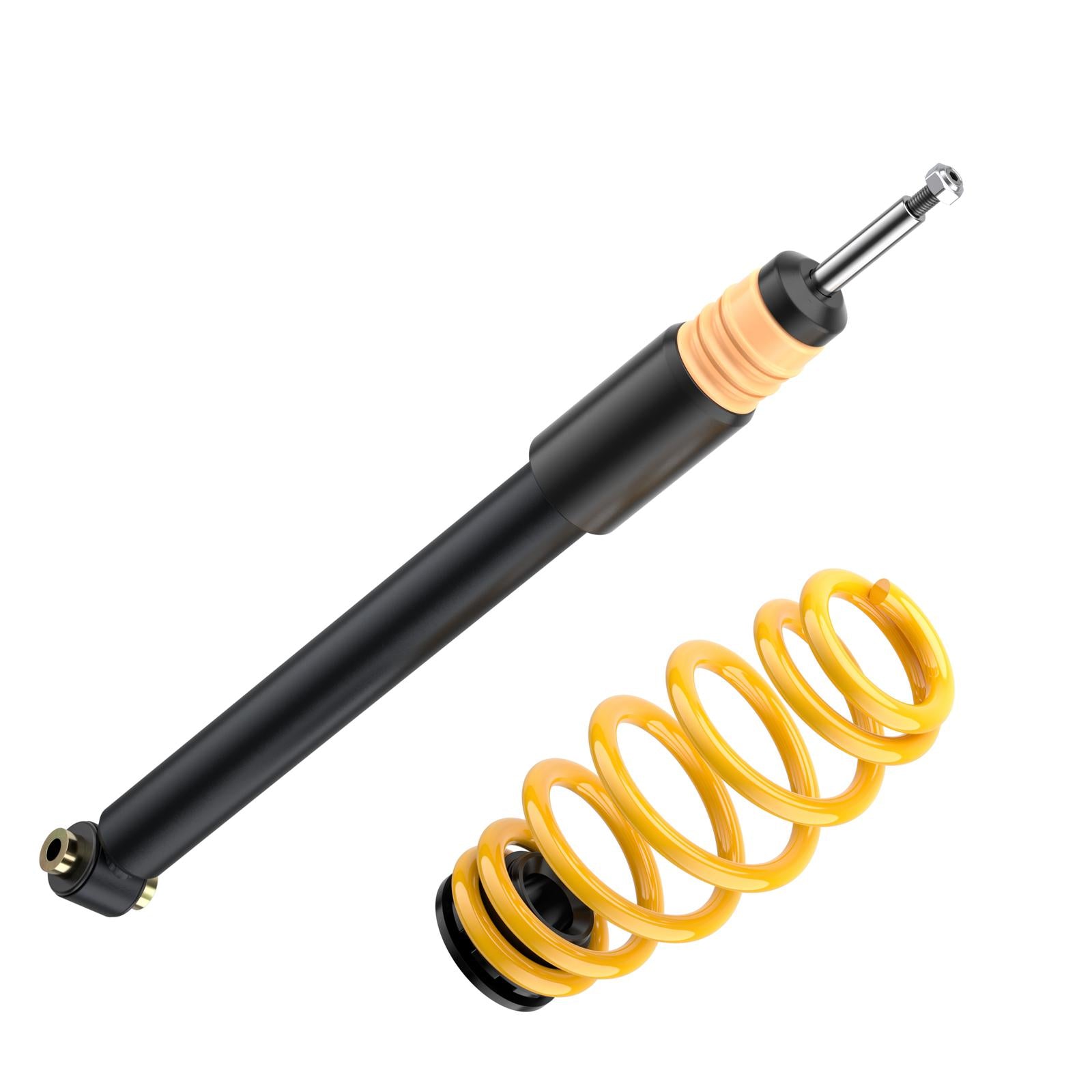

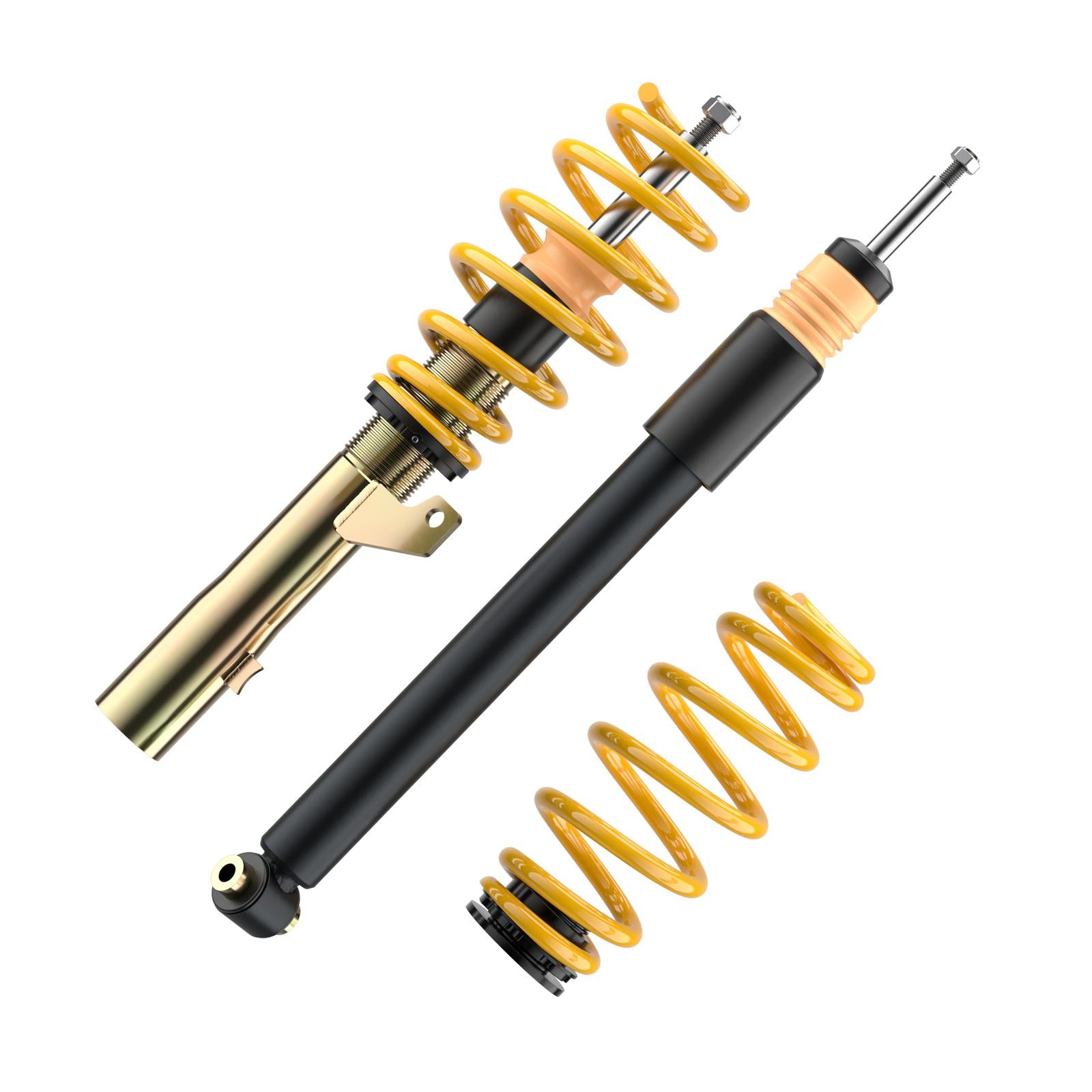

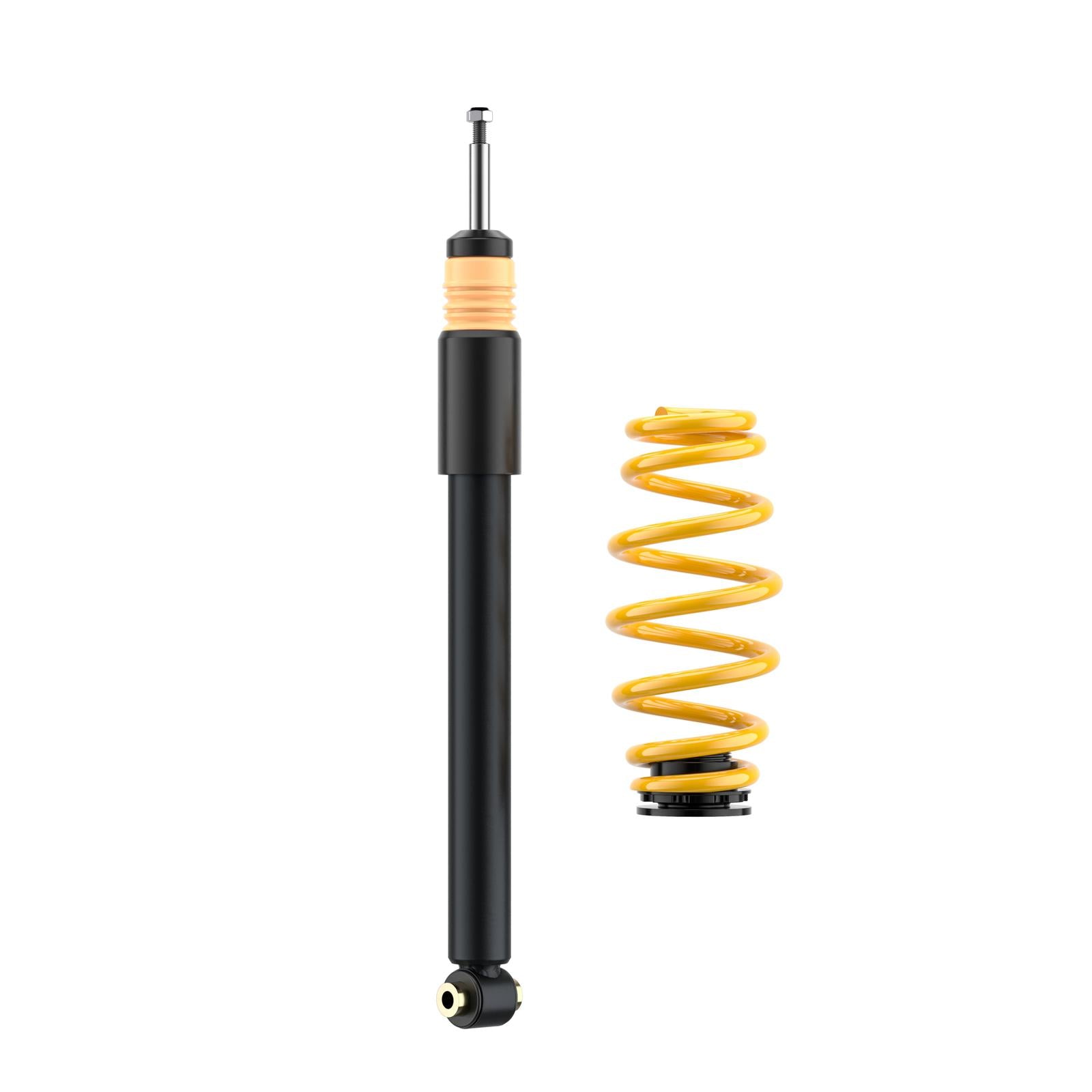

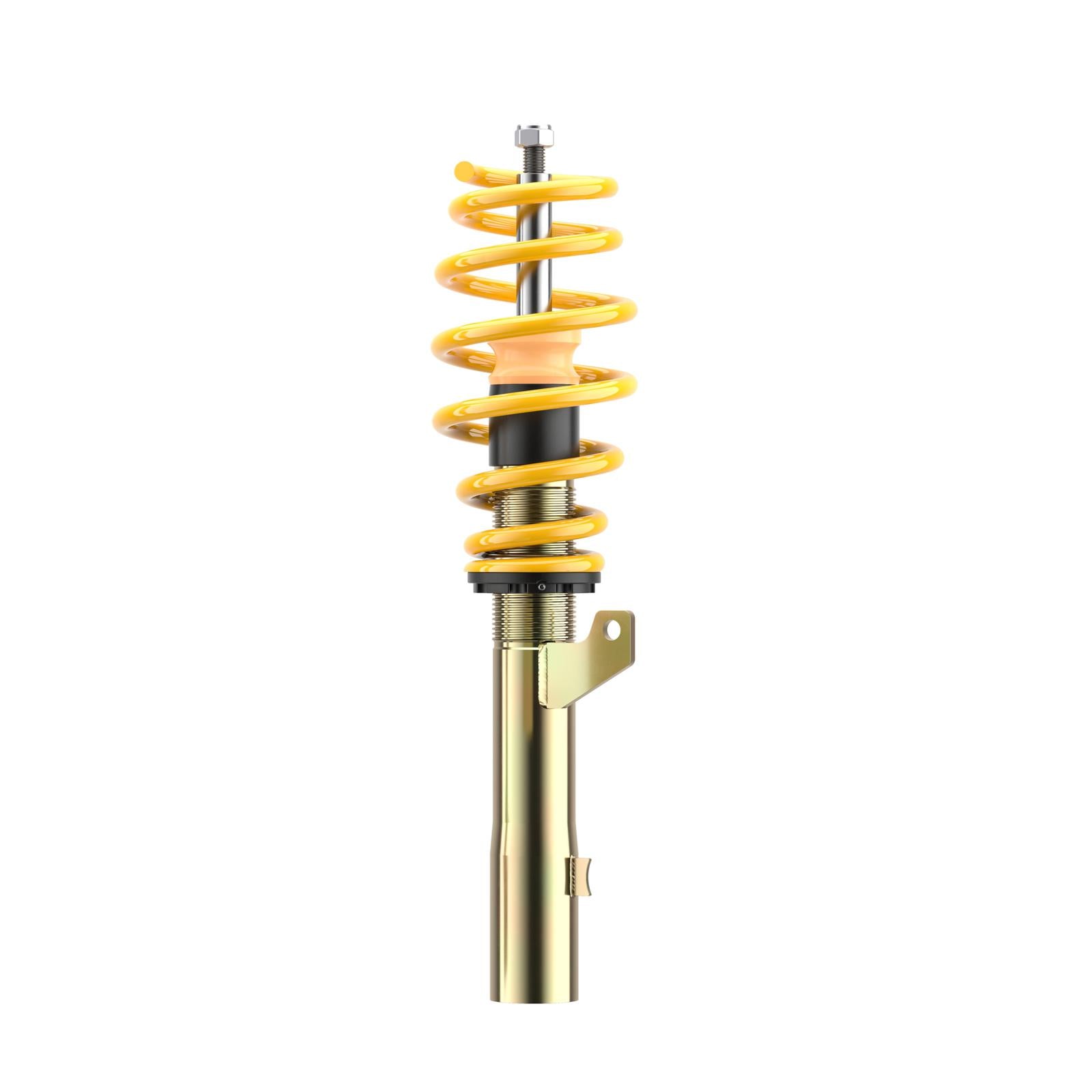

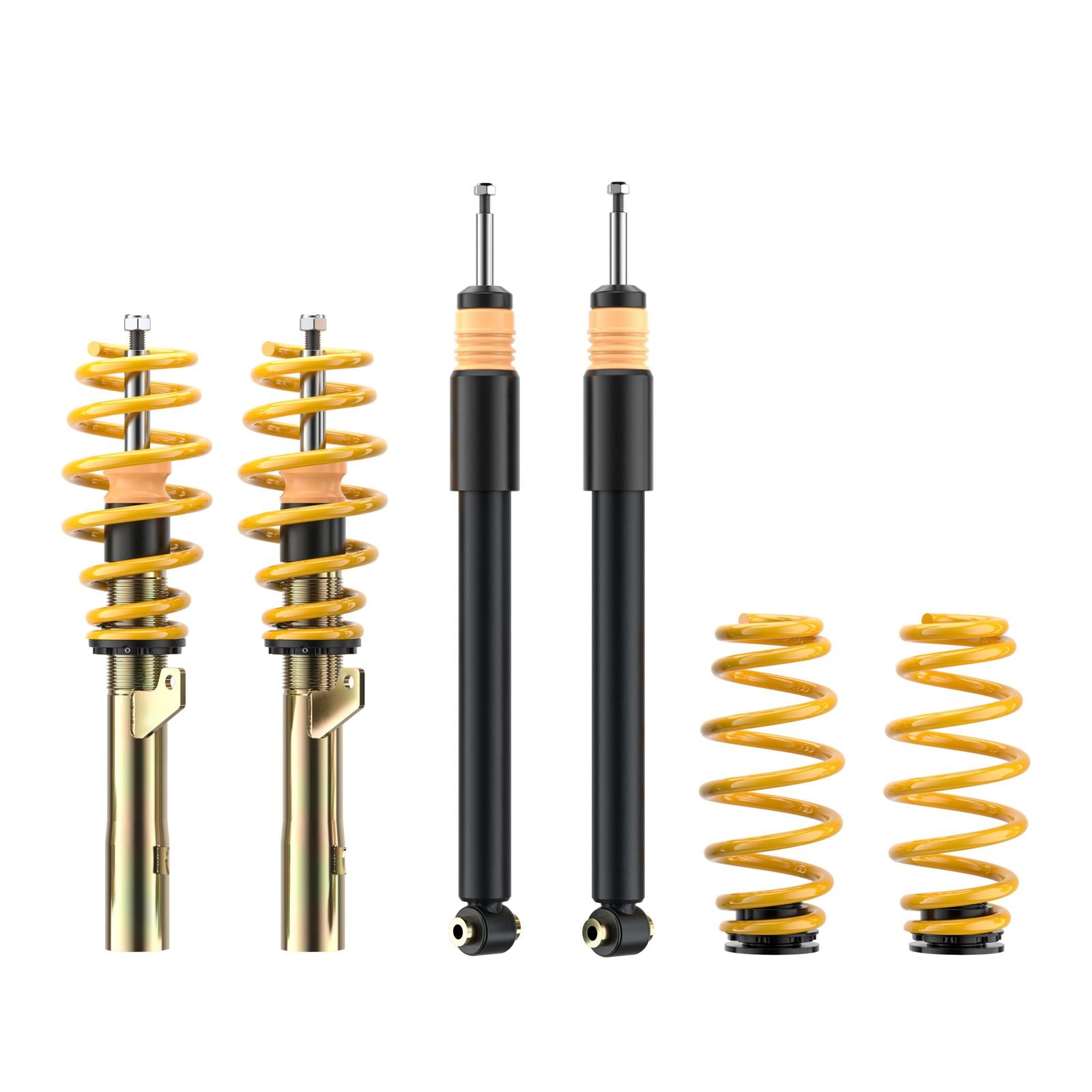

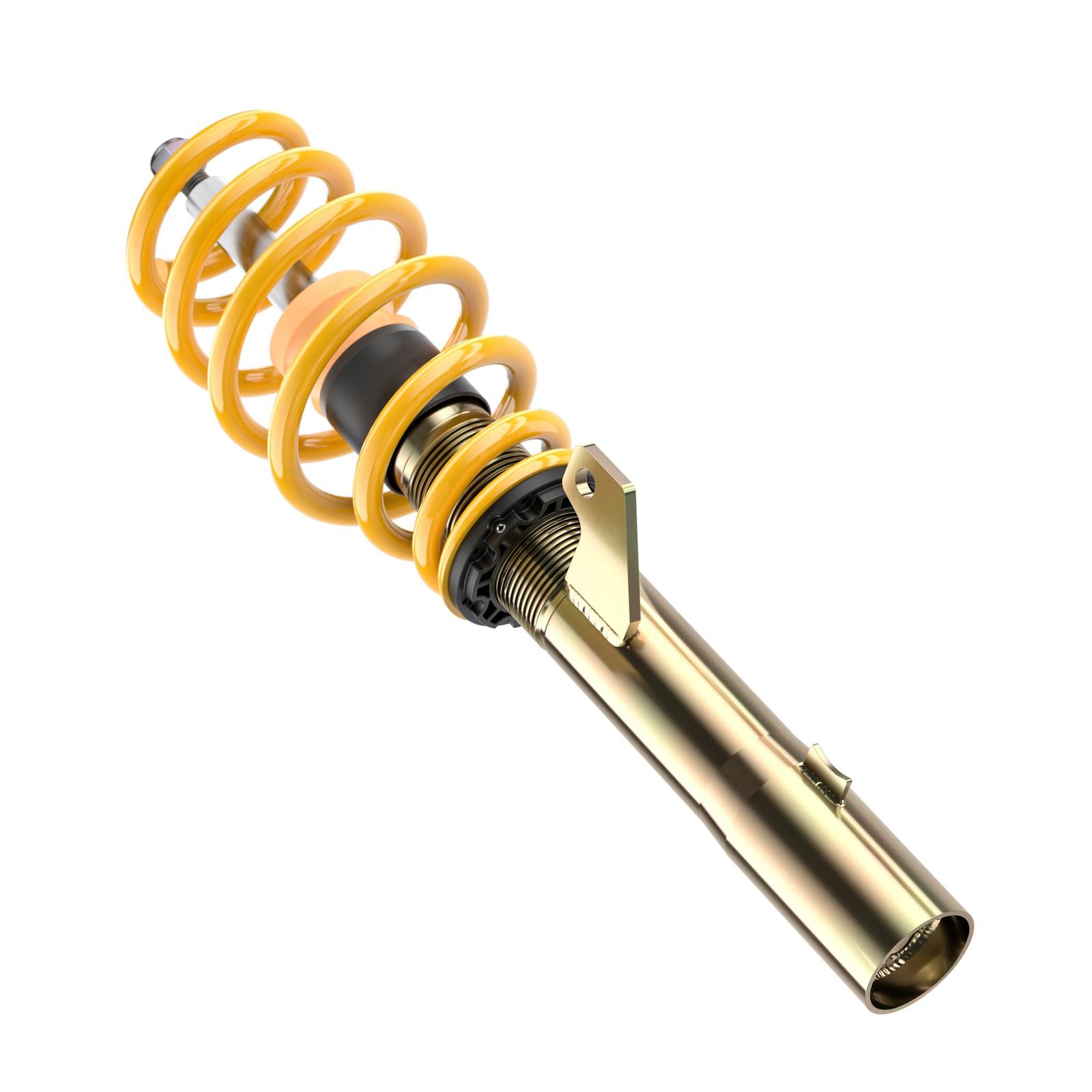

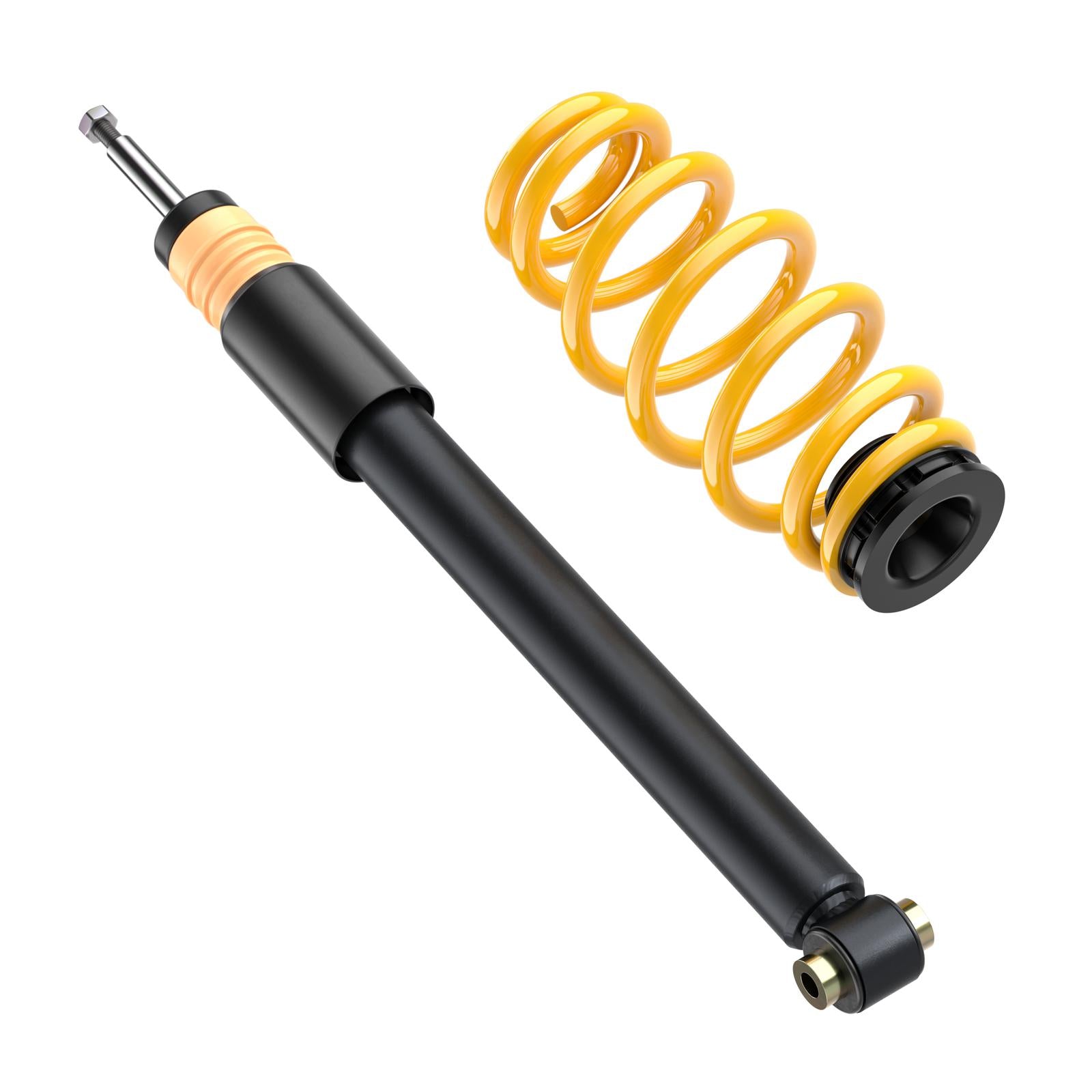

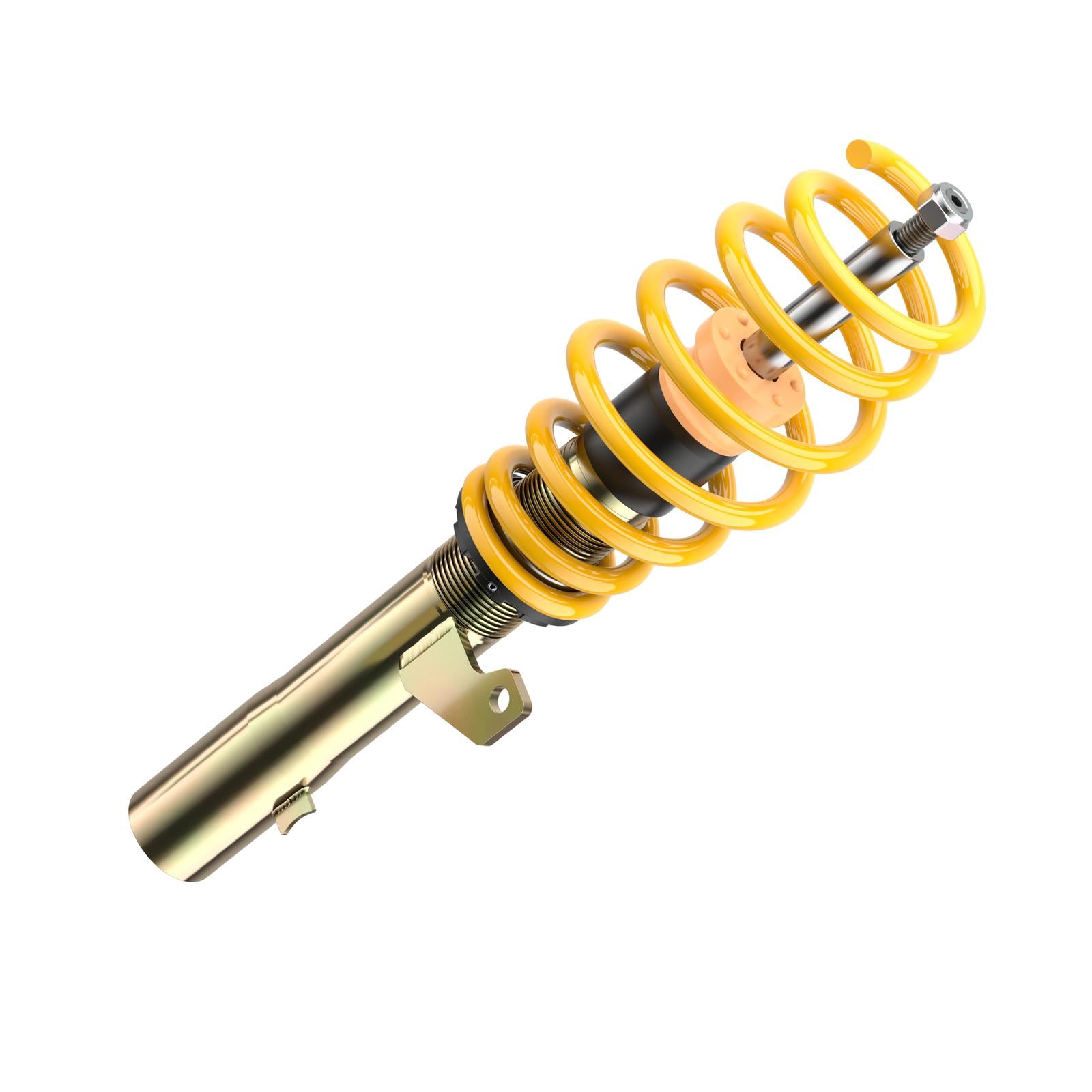

Coilover suspension ST X galvanized steel (with fixed identification)

ST X COILOVERS


The ST X coilover suspensions allow moderate to extreme lowering thanks to the stepless thread adjustment. Based on the know-how of KW, the market leader for individual suspension solutions, the ST X coilover suspensions impress with their quality and driving dynamics.

The ST X coilover suspension made by KW can be adjusted quickly and easily in terms of lowering using the trapezoidal thread on the galvanized and multi-sealed spring strut. To do this, the ST polyamide threaded spring ring is turned up or down when installed. The adjustment range is different for each vehicle; for example, on the Audi A3 it is between 35 and 65 mm on the front and rear axles. For a vehicle that is already relatively low in standard condition, such as the BMW 3 Series (E9x), the ST X coilover suspension can be used to achieve individual lowering in the range of 30 to 60 mm at the front and 25 to 55 mm at the rear. For vehicles with non-wheel-guiding double wishbone rear axles, the lowering is adjusted using the ST X coilover suspension rear axle height adjustment.

A damper tuning for more driving pleasure
The damper setup used by ST Suspensions in collaboration with KW focuses on a sporty setup. This reduces the typical rolling and swaying movements of the body when the suspension is compressed. A vehicle equipped with an ST coilover suspension reacts more directly to all driving maneuvers and is significantly more agile when driving. For example, the nose of the vehicle dips less during braking maneuvers and the handling characteristics improve. The high-quality workmanship of the ST X coilover suspensions includes a low-friction and pressure-resistant housing as well as a chrome-plated piston rod. The monoblock guide and seal package, which protects the twin-tube damper from the ingress of dirt particles, also ensures long-lasting driving pleasure.

Lowering with style: the ST X coilovers
Due to their high-quality workmanship, balanced damper tuning and easy adjustability of the stepless lowering, the ST X coilovers made by KW are the ideal coilovers for tuning enthusiasts:

- Individual lowering within the tested adjustment range
- Front and rear axles (if technically possible) with thread adjustment
- Galvanized threaded spring legs with additional sealing for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and stop elements with dust protection system
- Powerful 2-pipe damper with high-quality components for a long service life

EAN Code: 4250580429616
Packaging Length (cm): 76
Packaging Width (cm): 46.0
Packaging Height (cm): 15
Packaging Weight (kg): 17.70
