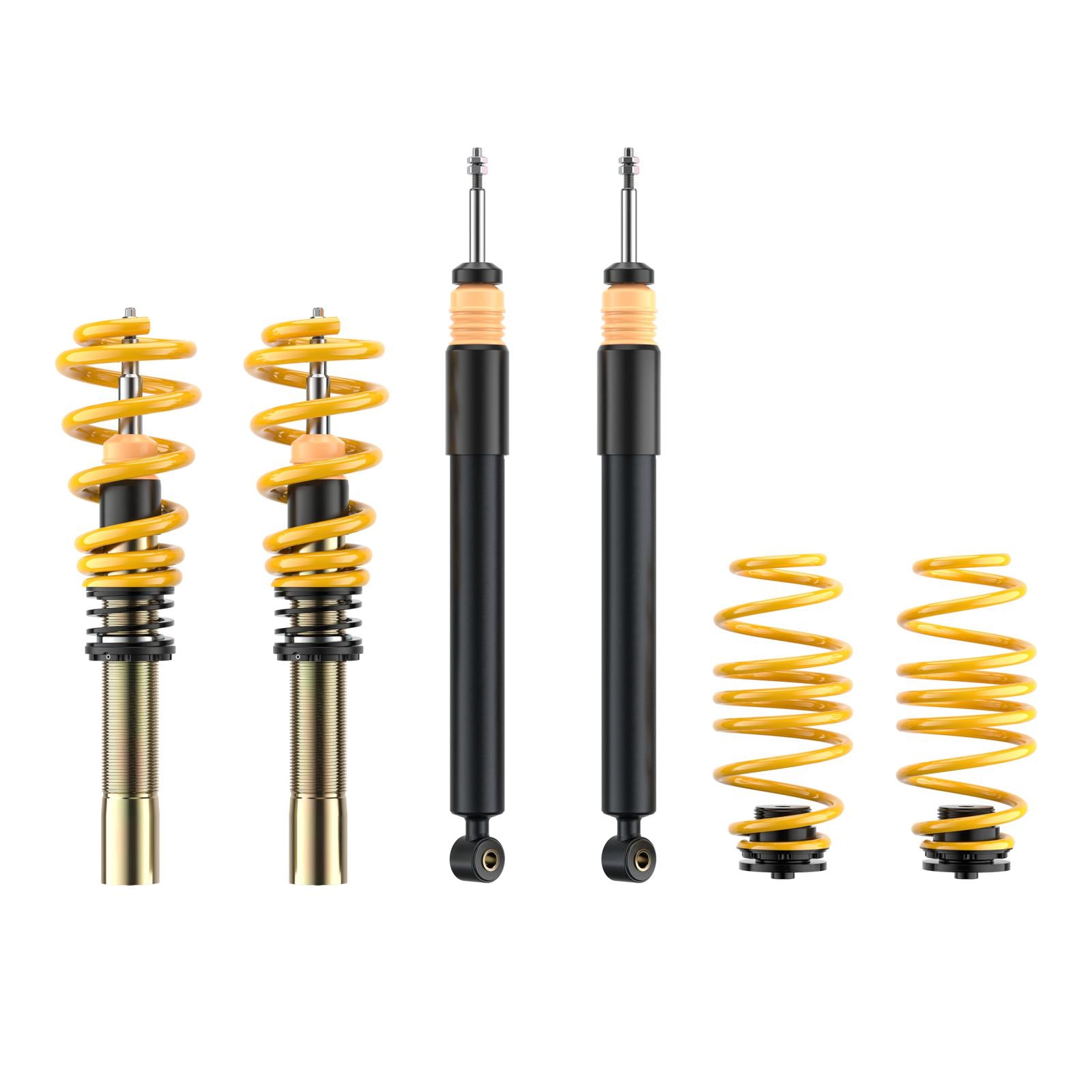

Coilover suspension ST XA galvanized steel (with hardness adjustment)

ST XA COILOVERS


For sporty drivers who want to influence more than just a continuous lowering, ST Suspensions has developed the ST XA Line in collaboration with KW. The adjustable damper setup allows the driving behavior to be individually adjusted.

For the sporty, ambitious driver
The adjustable damping characteristics of ST XA coilovers mean that the damper setup can be further adjusted individually. The damping technology used for this comes from KW. It allows the ST XA coilovers to be set tighter or more comfortable depending on the driver's wishes. The dampers are adjusted at the upper end of the chrome-plated piston rod. If the traction force is increased, the car drives even more accurately and the body movements are reduced. If a more comfortable damper setting is required, the adjustment is also made via the rebound adjustment. The adjustable dampers also allow the change to a different rim size to be taken into account. But even in the basic damper setting, a vehicle with an ST XA coilover is significantly more agile and offers sportier handling characteristics than a standard suspension.

Easy variation of the lowering
As with all ST XA coilovers, the lowering can be continuously adjusted using the coilover spring plate. Like KW, ST Suspensions uses a polyamide adjustable spring plate that allows the lowering to be easily adjusted using the trapezoidal thread on the galvanized spring strut. The lowering can also be changed when the car is installed by simply turning the adjustable spring plate higher or lower. If the car has a non-wheel-guiding double wishbone suspension on the rear axle, the lowering is adjusted using the ST Suspensions rear axle height adjustment. For your information: the lowering is different for each vehicle depending on its design. While older vehicle models such as the Honda Civic (EJ9) can be lowered between 40 - 75 mm with the ST XA coilovers, the Audi S3 (8P), which is already very low from the factory, can still be lowered by 10 - 40 mm.

KW Engineering: exclusively for ST suspensions
The high-quality ST XA coilover suspensions are based on the twin-tube damping principle in low-friction and pressure-resistant damper housings. The dampers are manufactured directly at KW. A monoblock guide and seal package reduces the friction in the damper when the chrome-plated piston rod is inserted and removed. In addition, optimal corrosion protection and multiple sealing of the galvanized spring strut ensure long-term driving pleasure with the ST XA coilover suspensions.

- Damping characteristics adjustable from the outside
- Latest damping technology for a long service life
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axles (if technically possible) with thread adjustment
- Galvanized threaded spring legs with additional sealing for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and stop elements with dust protection system

EAN Code: 4250580400141
Packaging Length (cm): 76
Packaging Width (cm): 46.0
Packaging Height (cm): 15
Packaging Weight (kg): 20.62
